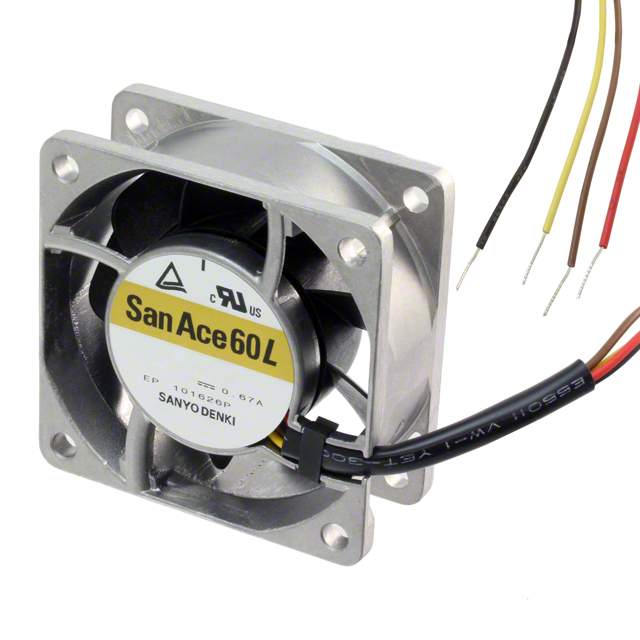

9LG0624P4S001图片1
9LG0624P4S001图片2
9LG0624P4S001图片3
9LG0624P4S001图片4
9LG0624P4S001图片5
9LG0624P4S001概述

SANYO DENKI - SANACE FANS  9LG0624P4S001  轴流风扇, 直流, 60MM, 24V直流, 340mA

The is a 24VDC 60mm thick Axial Fan with a ball bearing. This San Ace 60L series DC fan features UL1430 26AWG wire leaded power connection with +ve refers to red wire, -ve refers to black wire, sensor refers to yellow wire and control refers to brown wire. The LG type high air flow long life fan comes with an aluminum frame, plastic impeller UL94V-1, current blocking function and reverse polarity protection motor. The sound pressure level SPL is expressed as the value at 1m from air inlet side. The direction of rotation of the fan is clock wise direction. The maximum air flow of the San Ace 60L LG type is approximately 1.8 times and its maximum static pressure is about 3.5 times that of our conventional long life fan. The power consumption of this new fan is about 29% lower than that of our conventional long life fan. Its sound pressure level is 4dBA lower than that of our conventional long life fan.

9LG0624P4S001中文资料参数规格
技术参数

电源电压DC 24.0 V

额定电流 340 mA

额定功率 8.16 W

工作温度Max 70 ℃

工作温度Min -20 ℃

额定电压 24 V

电源电压 24 V

封装参数

封装 -

外形尺寸

长度 60 mm

宽度 25.00 mm

高度 25 mm

封装 -

其他

产品生命周期 Active

包装方式 Bulk

制造应用 HVAC

符合标准

RoHS标准

含铅标准 无铅

海关信息

ECCN代码 4A994

数据手册
