POWER RELAY, DPDT, 120VAC, 15A, PLUG IN; Relay Type:General Purpose; Coil Voltage VAC Nom:120V; Contact Current Max:15A; Contact Voltage AC Nom:277V; Contact Configuration:DPDT; Coil Type:AC; Nom Operating Power:8VA; No. of Poles:2

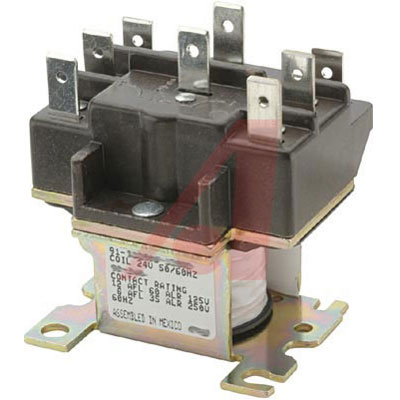

90-340 Thru 90-342 WR/RBM Type 91. A two pole double throw semi-enclosed relay.
**Features:**
* Easy to Install
* Suited for Use in Vending Machines, Appliances, Heating and Air Conditioning Applications and General Purpose Switching
* DPDT Pole Form
* 120 V Coil Voltage
* 6 A Continuous 35 A Inrush Inductive @ 250 VAC
* 15 A Resistive @ 277 VAC
* 6 Oz. Weight
* UL⁄CSA Certified
* RoHS Compliant
**Specifications:**
* Temperature Range: –40°F to 130°F
* Mechanical Life No Load: 1,000,000 Operation, 120 Operations/Min
* Electrical Life Rated Load: 100,000 Operations, 6 Operations/Min. Load Test Making Inrush Ratings 0.4 to 0.5 P.F.; Breaking 100% Continuous Rating 0.65 to 0.8 P.F.
* Agency: UL File Number E12139
* Coil, Insulatioon: Class B
* Coil, Termination: 1⁄4" Quick Connect
* Coil, Operate: 85% of Nominal Coil Voltage; 110% Maximum Safe Operate
* Coil, Duty Cyle: Continuous
