3.15A 250V 快熔型 编带
3.15A 250V AC DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Can, Vertical
立创商城:
3.15A 250V 快熔型
得捷:
FUSE BRD MNT 3.15A 250VAC RADIAL
艾睿:
Be protected by adding a subminiature 37013150000 fuse developed by Littelfuse. Its maximum power dissipation is 0.95 W. This device has a maximum power dissipation of 0.95 W. This device has a current rating of 3.15. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 37013150000 fuse has a radial termination style. The maximum AC voltage rating is 250 VAC. This product is 8Max mm tall with a diameter of 8.5 mm.
Chip1Stop:
Fuse Subminiature Fast Acting 3.15A 250V Radial 8.5 X 8mm Ammo Pack
Verical:
Fuse Subminiature Fast Acting 3.15A 250V Radial 8.5 X 8mm Ammo CCC/PSE/SEMKO/VDE/cULus
额定电压DC 250 V
额定电压AC 250 V
额定电流 3.15 A
易燃性等级 UL 94 V-0
耗散功率 0.95 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.95 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN

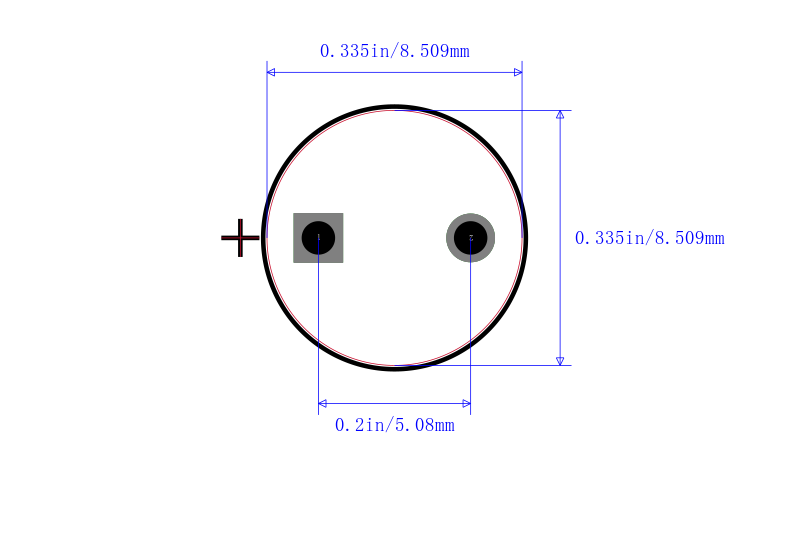

长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
