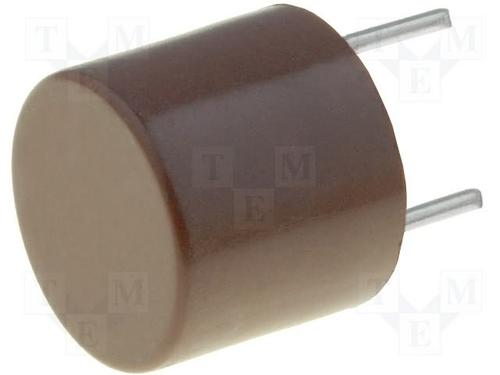

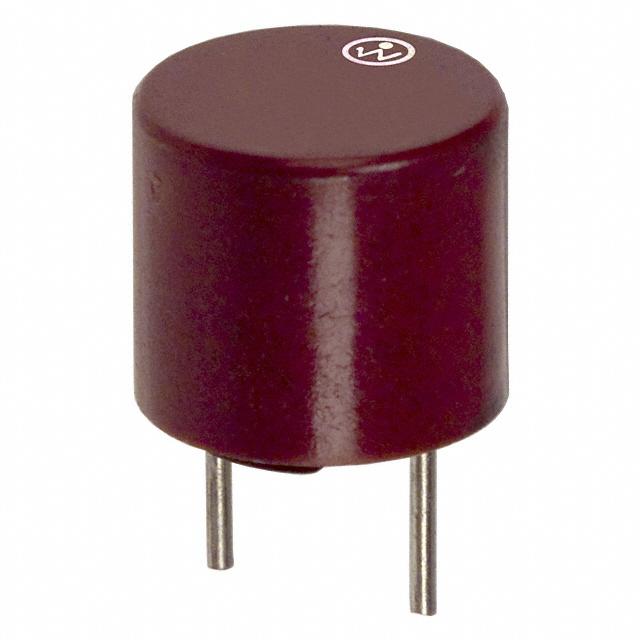

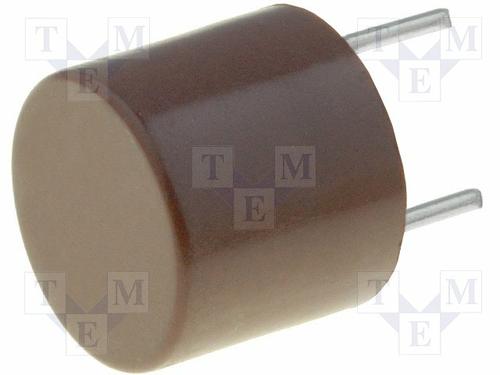

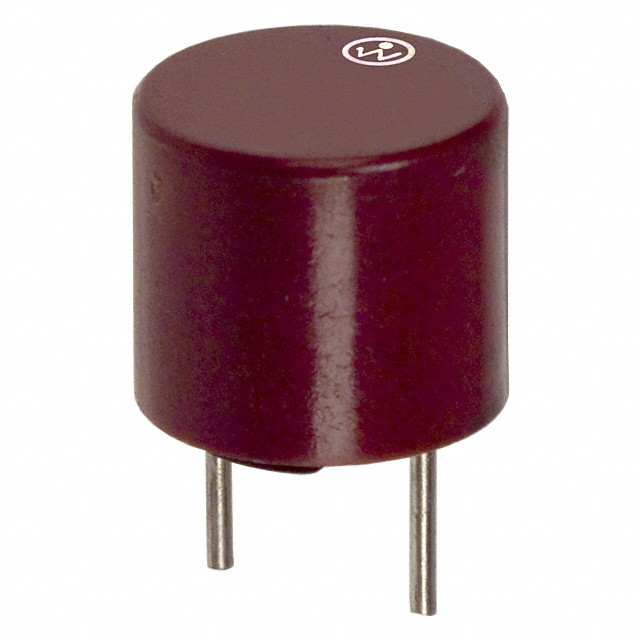

370 系列 快熔型 250 V 0.125 A 8.5 x 8 mm TR5® 径向引线 保险丝
125 mA 250 V AC 直流保险丝 板安装（不包括管筒式） 通孔 径向，罐状，垂直
得捷:
FUSE BRD MNT 125MA 250VAC RADIAL
艾睿:
A great alternative to a circuit breaker, this a subminiature 37001250410 fuse from Littelfuse will protect your electronics. Its maximum power dissipation is 0.172 W. This device has a maximum power dissipation of 0.172 W. This device has a current rating of 0.125. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37001250410 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 250 VAC.
TME:
Fuse: fuse; quick blow; 125mA; 250VAC; TR5; copper; Package: bag
Verical:
Fuse Subminiature Fast Acting 0.125A 250V Radial 8.5 X 8mm Bulk
触点电镀 Tin
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.125 A
易燃性等级 UL 94 V-0
耗散功率 0.172 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.172 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
触点材质 Copper
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
