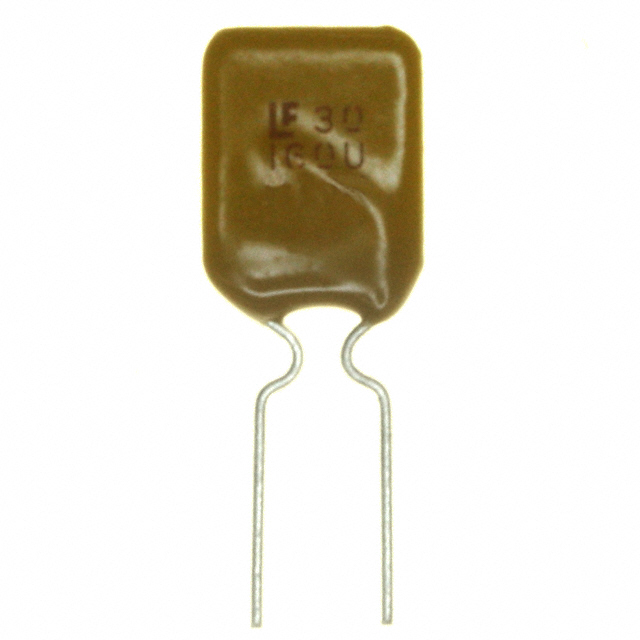

LITTELFUSE 30R160UU 自复式保险丝, PTC, 径向引线, 1.6A
This PTC resettable fuse from is ideal for low current and low voltage ratings. This device has a maximum current rating of 40. This part has a lead diameter of 0.51 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product is 8.9Max mm long, 15.2Max mm tall and 3Max mm deep. This product"s terminal pitch is 5.1typ mm.
额定电压DC 30.0 V
工作电压 30 V
跳闸时间 8 s
额定电流 1.6 A
额定功率 900 mW
耗散功率 0.9 W
电阻 0.11 Ω
保持电流 1.6 A
跳闸电流 3.2 A
额定电流Max 40 A
保持电流Max 1.6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
额定电压 30 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
引脚间距 5.1 mm
长度 8.9 mm
宽度 8.9 mm
高度 15.2 mm
封装 Radial, Disc
引脚间距 5.1 mm
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
