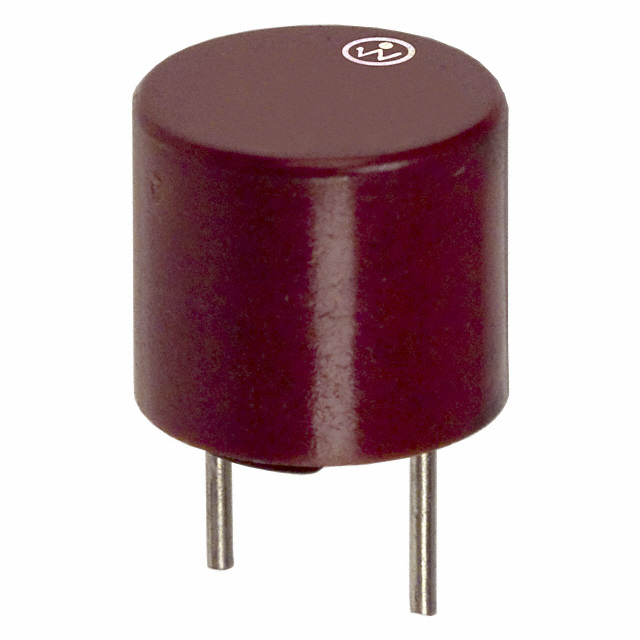

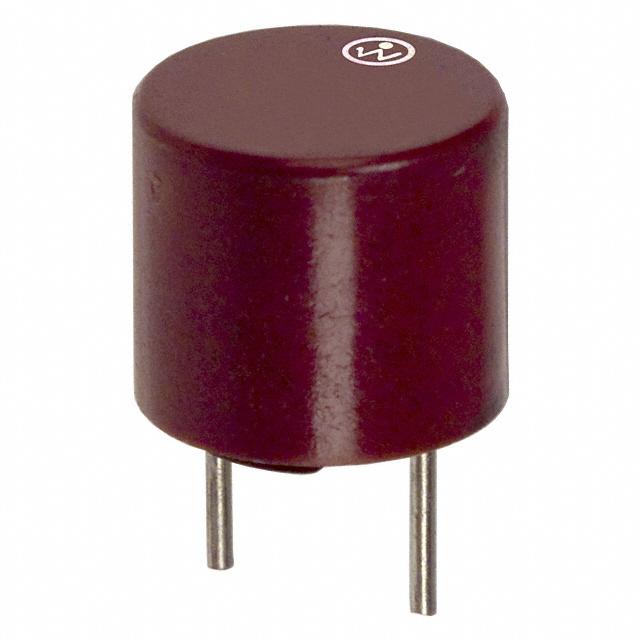

LITTELFUSE WICKMANN 37004000410 保险丝, PCB, 400mA, 250V, 快熔型
Be protected by adding a subminiature fuse developed by . This device has a current rating of 0.4. This device has a maximum power dissipation of 0.135 W. Its maximum power dissipation is 0.135 W. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 37004000410 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 8Max mm tall with a diameter of 8.5 mm.
触点电镀 Tin
额定电压DC 250 V
额定电压AC 250 V
额定电流 400 mA
易燃性等级 UL 94 V-0
耗散功率 0.135 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.135 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN

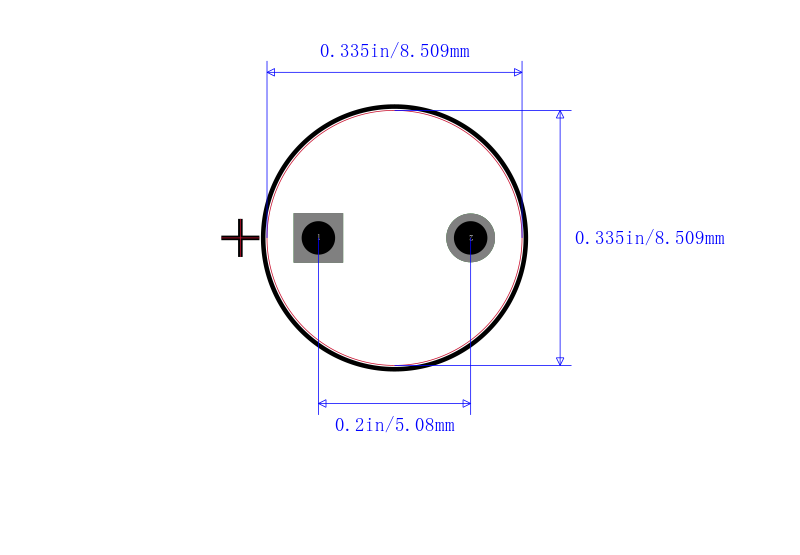

长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
触点材质 Copper
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
