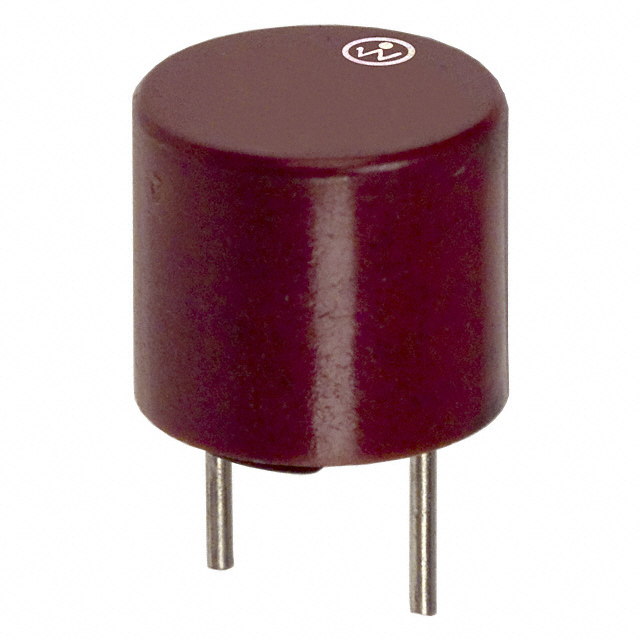

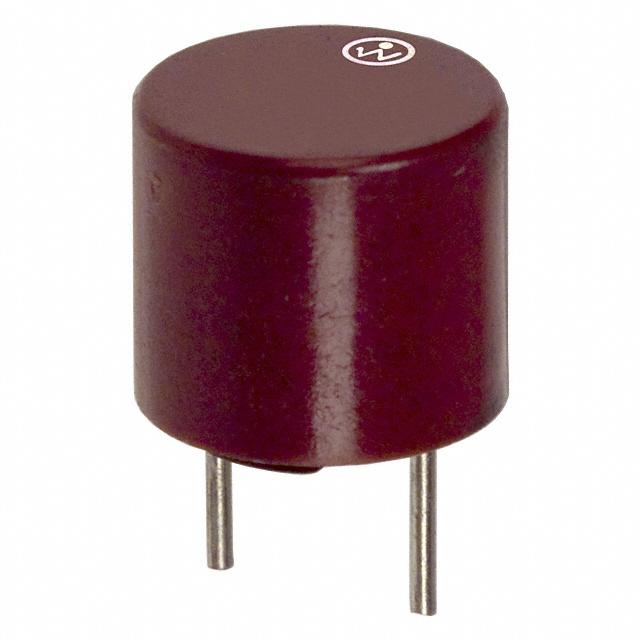

373 系列 8.5 x 8 mm 快速熔断 250 V 200 mA 径向引线 保险丝
A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. Its maximum power dissipation is 0.17 W. This device has a current rating of 0.2. This device has a maximum power dissipation of 0.17 W. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37302000410 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from thermoplastic. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 250 VAC.
额定电压DC 250 V
额定电压AC 250 V
额定电流 200 mA
易燃性等级 UL 94 V-0
耗散功率 0.17 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.17 W
额定电压 250 V
额定电压AC Max 250 V

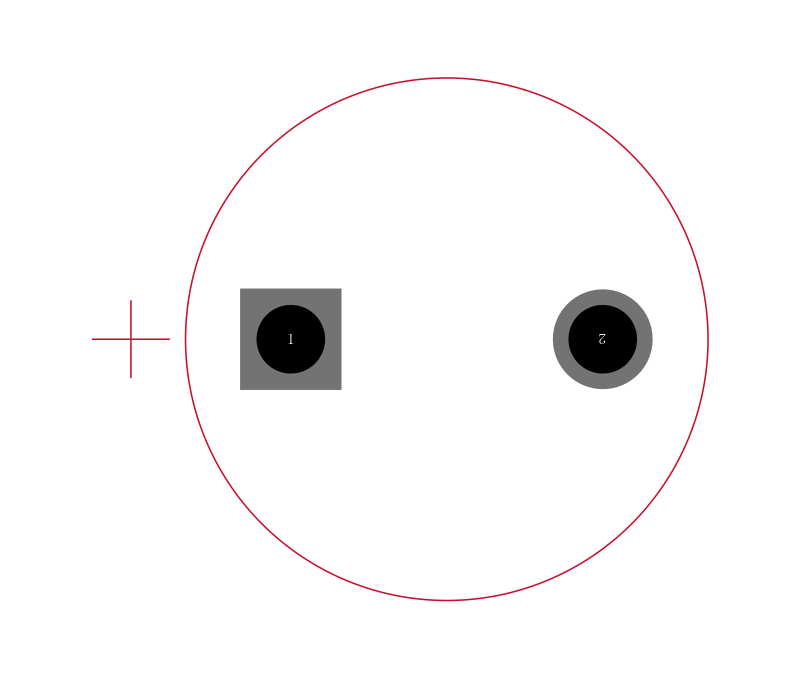

安装方式 Through Hole
引脚数 2
封装 Radial, CAN

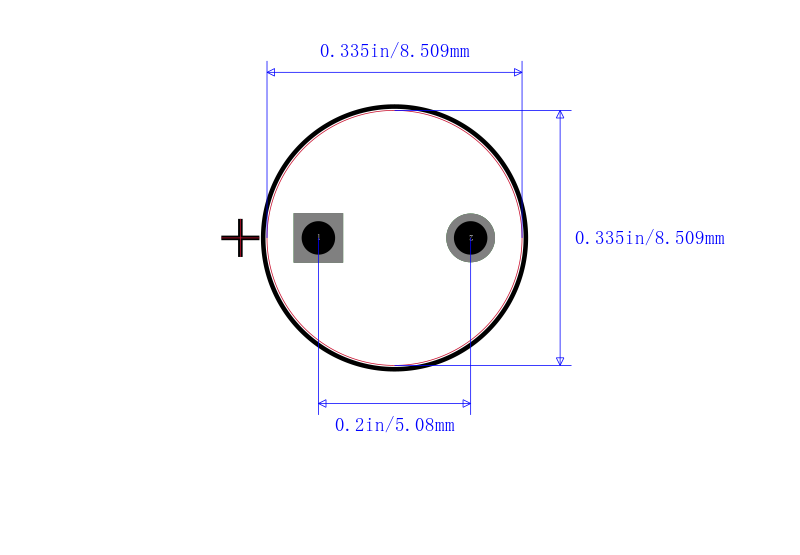

长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
