250V 2A 延时型 编带

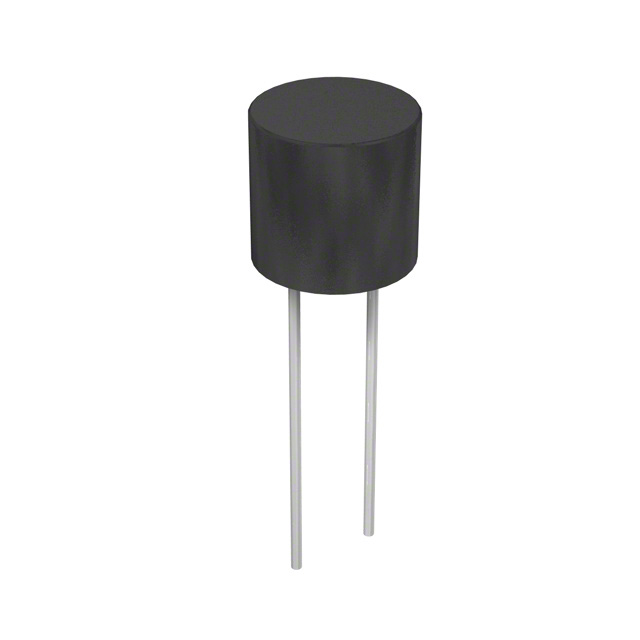

A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. Its maximum power dissipation is 0.6 W. This device has a maximum power dissipation of 0.6 W. This device has a current rating of 2. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37212000001 fuse has a radial termination style. The maximum AC voltage rating is 250 VAC. This product is 8Max mm tall with a diameter of 8.5 mm.
额定电压DC 250 V
额定电压AC 250 V
额定电流 2 A
易燃性等级 UL 94 V-0
耗散功率 0.6 W
电阻 0.03 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.6 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
37212000001 Littelfuse 力特 | 当前型号 | 当前型号 |
37212000411 力特 | 完全替代 | 37212000001和37212000411的区别 |
37212000511 力特 | 完全替代 | 37212000001和37212000511的区别 |
37212000000 力特 | 完全替代 | 37212000001和37212000000的区别 |
