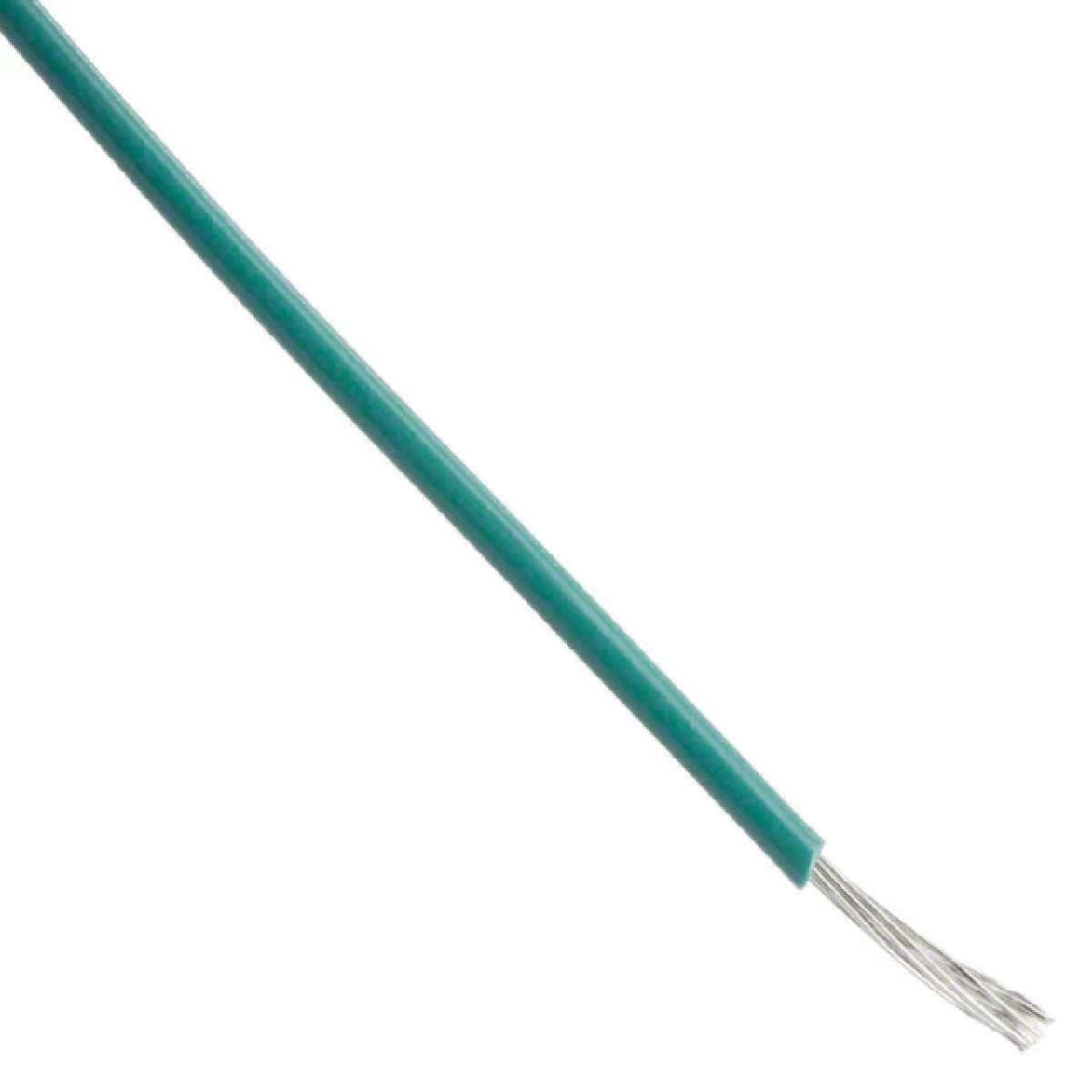

Wire, Hook-Up; 30AWG; 7/38; 0.016in.; 0.043in.; -40℃; 300V; Green
0.016 in. Insulation, 300 V, Color-Coded PVC Insulation Hook-Up Wire
** Insulation:** Color-coded polyvinylchloride. ** Nominal Insulation Thickness:** 0.016" 0.41 mm. ** Voltage Rating:** 300 V. ** Stocked Colors:** 0-9.
得捷:
HOOK-UP STRND 30AWG GRN 1000"
艾睿:
Hook-up Wire 30AWG 304.8m 1.09mm Tinned Copper Green 300V Spool
Allied Electronics:
Wire, Hook-Up; 30 AWG; 7/38; 0.016 in.; 0.043 in.; -40 degC; 300 V; Green
TME:
Wire; UL1007,UL1569; stranded; Cu; 30AWG; green; 305m; PVC; 300V
线规 30 AWG
额定电压DC 300 V
易燃性等级 UL VW-1
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 300 V
额定电压 300 V
长度 304.8 m
颜色 Green
绝缘材质 PVC
工作温度 -40℃ ~ 105℃
导体材质 Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
