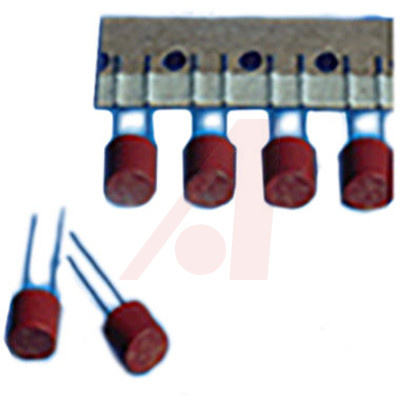

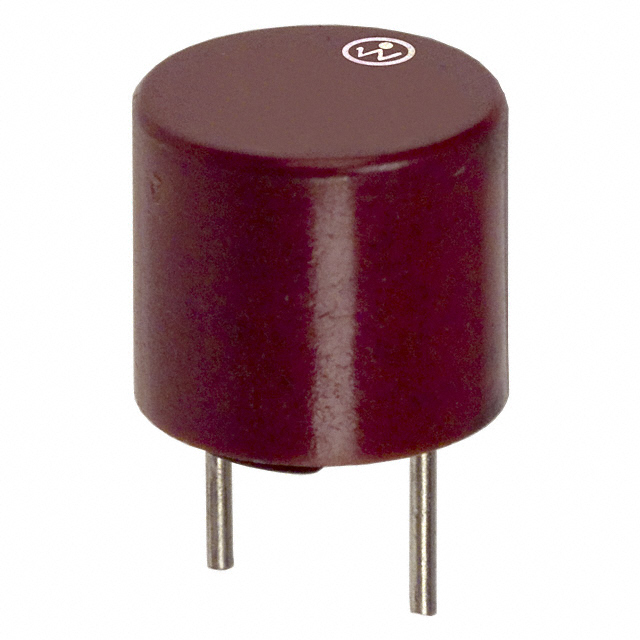

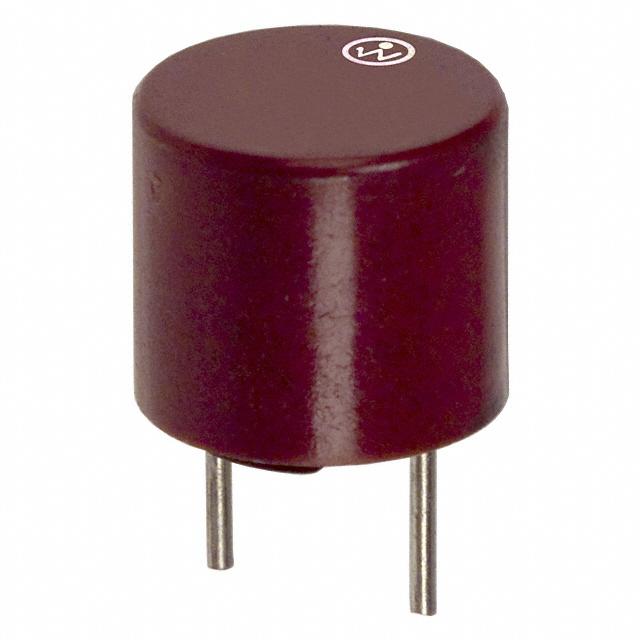

373 系列 快熔型 250 V 1 A 8.5 x 8 mm TR5® 径向引线 保险丝
** 373 Series TR5 Fast Acting Fuses**
The TR5 373 series from littelfuse are a range of fast acting 250V fuses. The 373 series of fuse are designed to be used in applications such as battery chargers, power supplies, industrial controllers and consumer electronics.
立创商城:
1A 250V 快熔型
艾睿:
Fuse Subminiature Fast Acting 1A 250V Radial 8.5 X 8mm Thermoplastic Bulk CSA/UL
Allied Electronics:
1A Radial F Leaded PCB Mount Fuse; 250 V ac
Chip1Stop:
Fuse Subminiature Fast Acting 1A 250V Radial 8.5 X 8mm Thermoplastic Bulk
Verical:
Fuse Subminiature Fast Acting 1A 250V Radial 8.5 X 8mm Thermoplastic Bulk CSA/UL
儒卓力:
**1A 250V fast TR5 short pins UL **
额定电压DC 250 V
额定电压AC 250 V
额定电流 1 A
易燃性等级 UL 94 V-0
耗散功率 0.19 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.19 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
