250mA 250V 延时型 袋装
250mA 250V AC DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Can, Vertical
得捷:
FUSE BOARD MNT 250MA 250VAC RAD
立创商城:
250mA 250V 延时型
贸泽:
带引线的保险丝(通孔型) IEC TL LBC LL .250A TR5
艾睿:

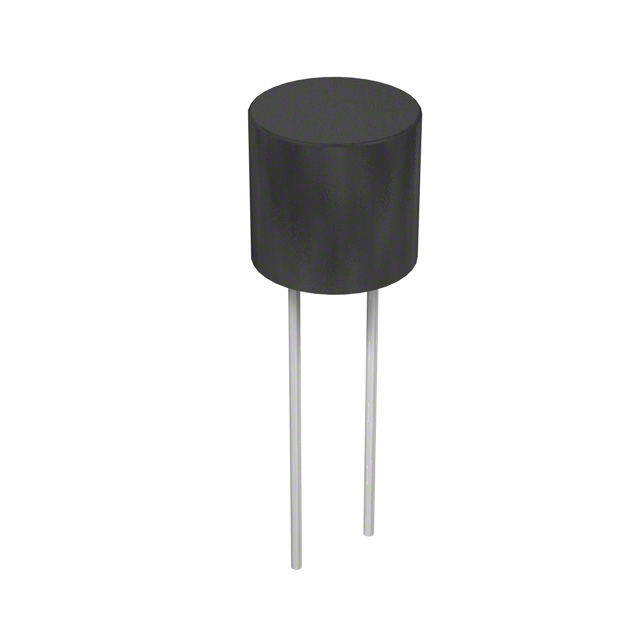

A great alternative to a circuit breaker, this a subminiature 37202500001 fuse from Littelfuse will protect your electronics. This device has a maximum power dissipation of 0.15 W. Its maximum power dissipation is 0.15 W. This device has a current rating of 0.25. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37202500001 fuse has a radial termination style. The maximum AC voltage rating is 250 VAC. This product is 8Max mm tall with a diameter of 8.5 mm.
Chip1Stop:
Fuse Subminiature Slow Blow Acting 0.25A 250V Radial 8.5 X 8mm Ammo Pack
Verical:
Fuse Subminiature Slow Blow Acting 0.25A 250V Radial 8.5 X 8mm Ammo
儒卓力:
**0.25A 250V slow TR5 long pin **
额定电压DC 250 V
额定电压AC 250 V
额定电流 250 mA
易燃性等级 UL 94 V-0
耗散功率 0.15 W
电阻 400 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.15 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
37202500001 Littelfuse 力特 | 当前型号 | 当前型号 |
0663.250ZRLL 力特 | 完全替代 | 37202500001和0663.250ZRLL的区别 |
0663.250MALL 力特 | 完全替代 | 37202500001和0663.250MALL的区别 |
37202500411 力特 | 类似代替 | 37202500001和37202500411的区别 |
