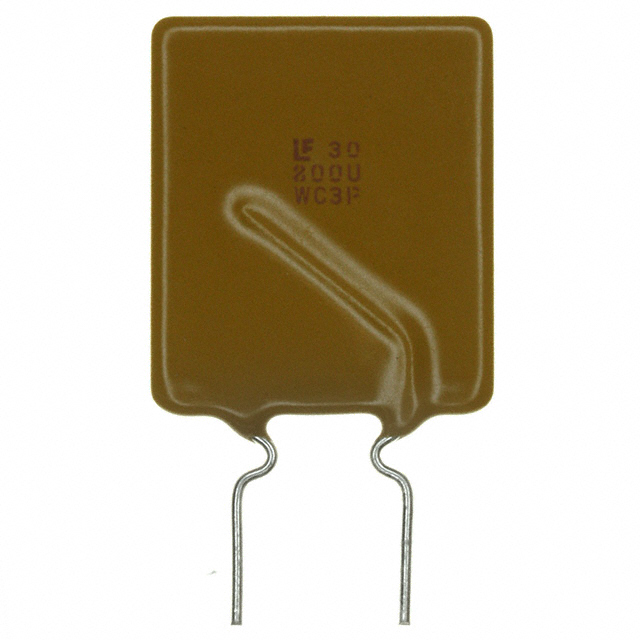

LITTELFUSE 30R800UH 自复式保险丝, 30VDC, 40A, 径向引线
This PTC resettable fuse from is ideal for low current and low voltage ratings. This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product is 21.6Max mm long, 31.1Max mm tall and 3Max mm deep. This product"s terminal pitch is 10.2typ mm.
额定电压DC 30.0 V
工作电压 30 VDC
跳闸时间 18.8 s
额定电流 8 A
额定功率 4 W
耗散功率 4 W
电阻 0.02 Ω
保持电流 8 A
跳闸电流 16 A
额定电流Max 40 A
保持电流Max 8 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
额定电压 30 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 31.1 mm
宽度 21.6 mm
高度 31.1 mm
封装 Radial, Disc
厚度 3.05 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
