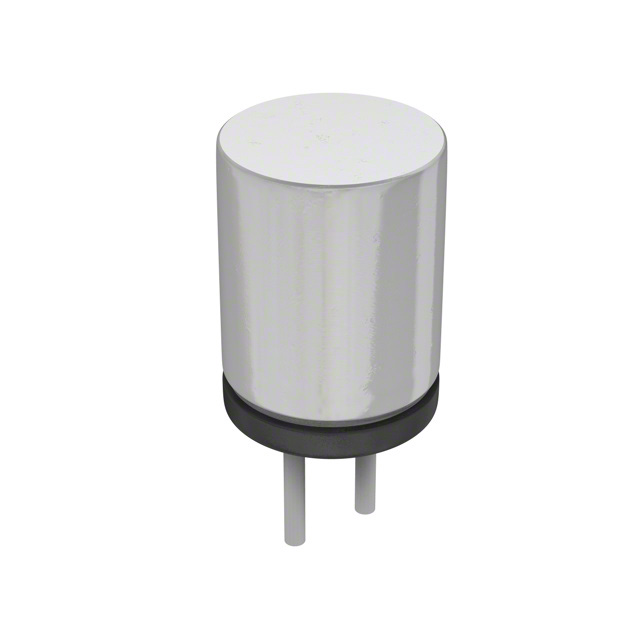

FUSE BOARD MNT 50mA 125VAC 63VDC
A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. This device has a maximum power dissipation of 0.04 W. This device has a current rating of 0.05. Its maximum power dissipation is 0.04 W. This fuse has a minimum operating temperature of -25 °C and a maximum of 70 °C. It has 2 terminals. The 30300500421 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8Max mm tall with a diameter of 6 mm. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 63 VDC.
额定电压DC 63 V
额定电压AC 125 V
额定电流 0.05 A
易燃性等级 UL 94 V-0
耗散功率 0.04 W
工作温度Max 70 ℃
工作温度Min -25 ℃
耗散功率Max 0.04 W
额定电压 125 V
额定电压DC Max 63 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
高度 8 mm
直径 6.00 mm
封装 Radial, CAN
颜色 Black
工作温度 -25℃ ~ 70℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
