37213150431

FUSE BRD MNT 3.15A 250VAC RADIAL

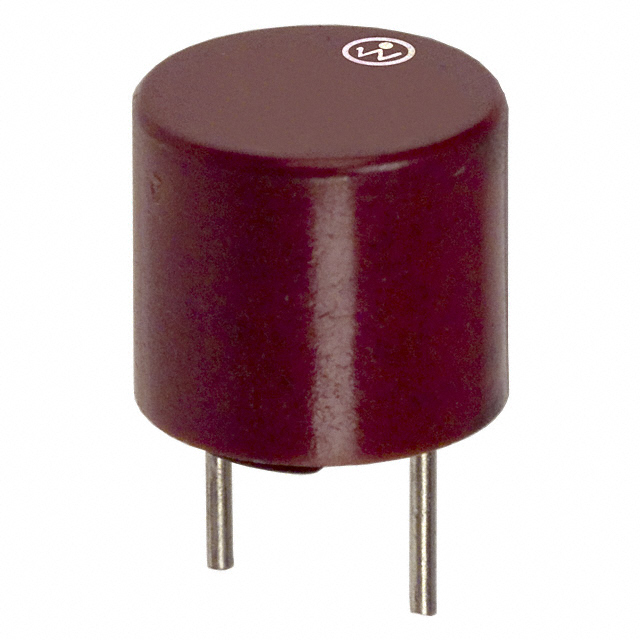

The 372 series from Littlefuse are TR5, sub miniature time lag radial leaded fuses. The fuses can be either soldered directly into a printed circuit board or can be plugged into a two pin socket. The 370 series fuses are designed in accordance to IEC 60127-3 standards.

.

Rated voltage of 250VAC

.

Current rating range from 40mA to 6.3A

.

Reduced PCB space requirements

.

UL, VDE, PSE/JET, CCC approved

.

Low internal resistance

.

Shock safe casing

.

Vibration resistant

.

Available in 35A, 40A, 50A breaking capacity

.

Operating temperature range -40°C to 85°C
