39511600440概述

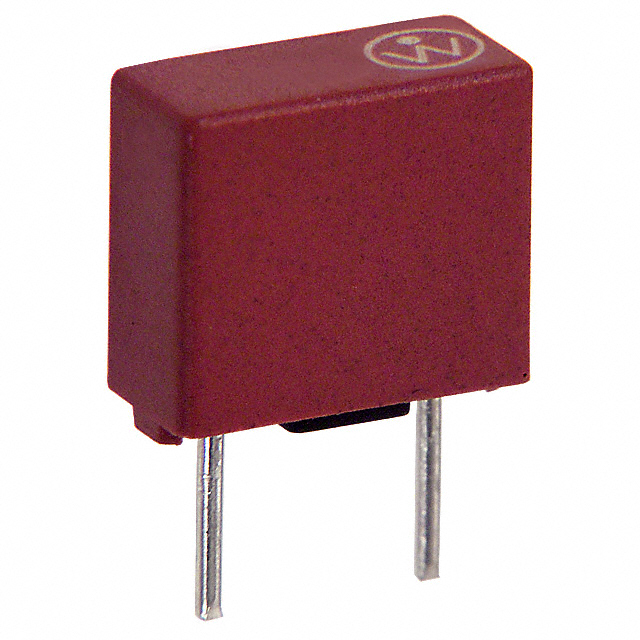

Fuses with Leads Through Hole 125V UL FA SL 1.6A TE5

Be protected by adding a subminiature fuse developed by . This device has a maximum power dissipation of 0.275 W. Its maximum power dissipation is 0.275 W. This device has a current rating of 1.6. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 39511600440 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8.5 mm long, 8Max mm tall and 4Max mm deep. The maximum AC voltage rating is 125 VAC.

39511600440中文资料参数规格
技术参数

额定电压DC 125 V

额定电压AC 125 V

额定电流 1.6 A

易燃性等级 UL 94 V-0

耗散功率 0.275 W

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 0.275 W

额定电压 125 V

额定电压AC Max 125 V

封装参数

安装方式 Through Hole

引脚数 2

封装 Radial, Box

外形尺寸

长度 8 mm

宽度 8.5 mm

高度 8 mm

封装 Radial, Box

物理参数

颜色 Brown

工作温度 -40℃ ~ 85℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买39511600440
型号: 39511600440
描述:Fuses with Leads Through Hole 125V UL FA SL 1.6A TE5
