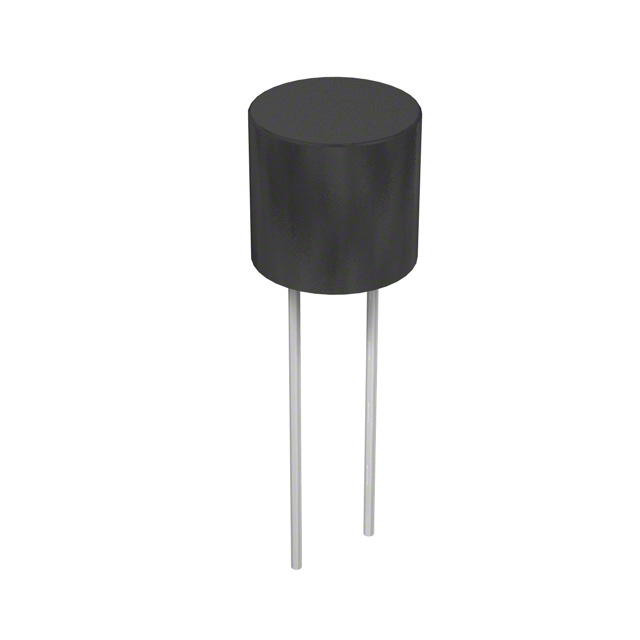

Fuse Subminiature Slow Blow Acting 6.3A 250V Radial 8.5 X 8mm Ammo
The is a 6.3A/250VAC time-lag Anti-surge Fuse with thermoplastic PA66 polyamide base/cap, copper tin-plated round pins and radial leaded case. This 372-series halogen-free fuse features low internal resistance. Direct solderable or plug-in versions.
额定电压DC 250 V
额定电压AC 250 V
额定电流 6.3 A
易燃性等级 UL 94 V-0
耗散功率 1.25 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1.25 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
高度 8 mm
直径 8.50 mm
脚长度 18.8 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
制造应用 Safety, Industrial, Power Management, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
