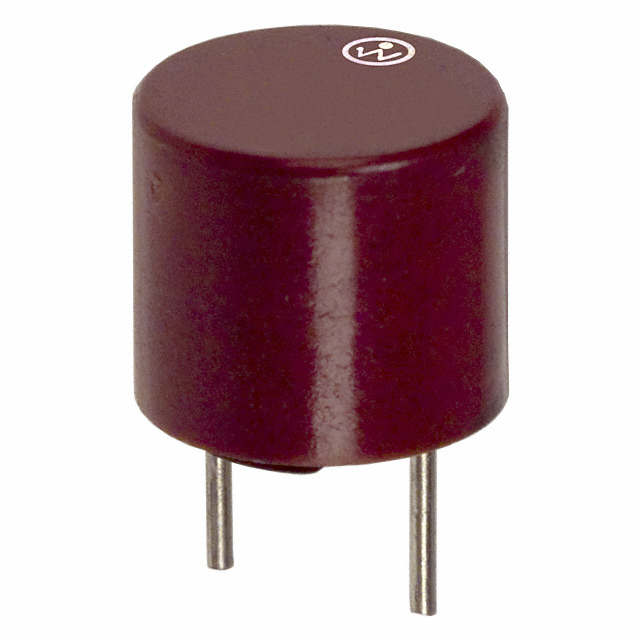

374系列， TR5 ，延时保险丝 374 Series, TR5, Time-Lag Fuse
A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. This device has a current rating of 0.2. Its maximum power dissipation is 0.08 W. This device has a maximum power dissipation of 0.08 W. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37402000410 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from thermoplastic. This product is 8Max mm tall with a diameter of 8.5 mm.
额定电压DC 250 V
额定电压AC 250 V
额定电流 200 mA
易燃性等级 UL 94 V-0
耗散功率 0.08 W
电阻 1.2 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.08 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
