37011000000概述
1A 250V 快熔型 盒装
Be protected by adding a subminiature fuse developed by . Its maximum power dissipation is 0.31 W. This device has a current rating of 1. This device has a maximum power dissipation of 0.31 W. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 37011000000 fuse has a radial termination style. The maximum AC voltage rating is 250 VAC. This product is 8Max mm tall with a diameter of 8.5 mm.
37011000000中文资料参数规格
技术参数
额定电压DC 250 V
额定电压AC 250 V
额定电流 1 A
易燃性等级 UL 94 V-0
耗散功率 0.31 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.31 W
额定电压 250 V
额定电压AC Max 250 V
封装参数
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
外形尺寸
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
物理参数
颜色 Brown
工作温度 -40℃ ~ 85℃
其他
产品生命周期 Active
包装方式 Tape
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17

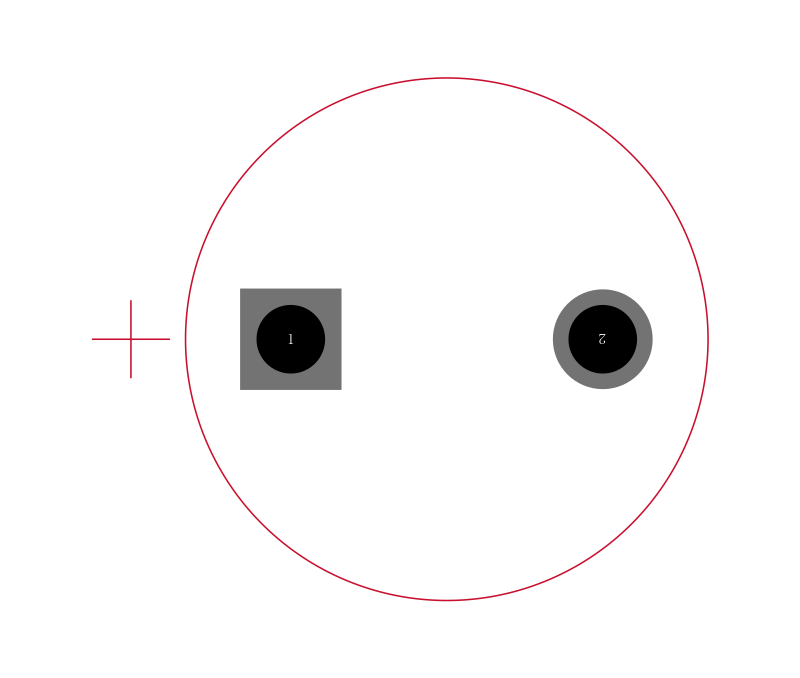

37011000000引脚图与封装图
