125mA 250V 延时型

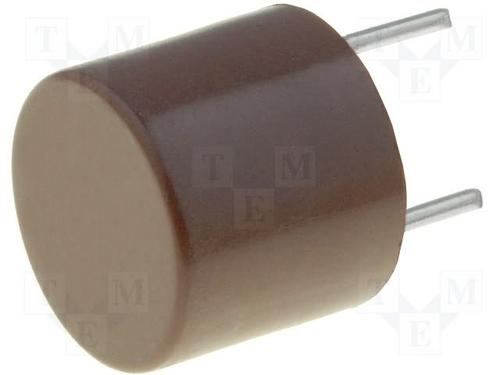

Be protected by adding a subminiature fuse developed by . This device has a maximum power dissipation of 0.12 W. This device has a current rating of 0.125. Its maximum power dissipation is 0.12 W. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 37201250411 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 250 VAC.
额定电压DC 250 V
额定电压AC 250 V
额定电流 125 mA
易燃性等级 UL 94 V-0
耗散功率 0.12 W
电阻 1.35 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.12 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
