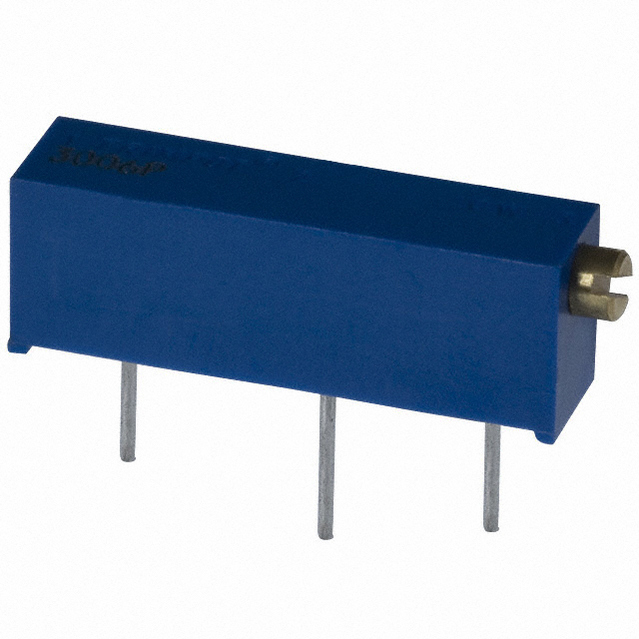

3006P-1-105LF

BOURNS  3006P-1-105LF  微调器,15转 1M

19mm in. 750mW 矩形端部调节 3006 系列标准型

Bourns 标准 3006P 系列 19mm in. 矩形端部调节陶瓷微调电容器，额定功率 @ 70°C 750mW。3006P 系列金属陶瓷微调电容器转动臂转到终端就会停转且封闭式设计，可进行电路板冲洗。

额定 15 转调整角度

提供面板安装适配器，库存号 107-6878

欧时:
Bourns 3006 系列 15 转 通孔 微调电阻器 3006P-1-105LF, 带针接端, 1MΩ ±10%, 0.75W, ±100ppm/°C

得捷:
TRIMMER 1M OHM 0.75W PC PIN SIDE

立创商城:
1MΩ ±10%

艾睿:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube

Allied Electronics:
Trimmer; Cermet; Rest 1 Megohms; PCB; 15 Turns; Pwr-Rtg 0.75W

安富利:
Res Cermet Trimmer 1M Ohm 10% 3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube

TME:
Potentiometer: mounting; multiturn; 1MΩ; 750mW; No.of el.turns:15

Verical:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube

Newark:
# BOURNS  3006P-1-105LF  Trimmer, Multiturn, 1 Mohm, 750 mW, ± 10%, Trimpot 3006 Series, 15 Turns, Through Hole

MASTER:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube

Win Source:
TRIMMER 1M OHM 0.75W PC PIN
