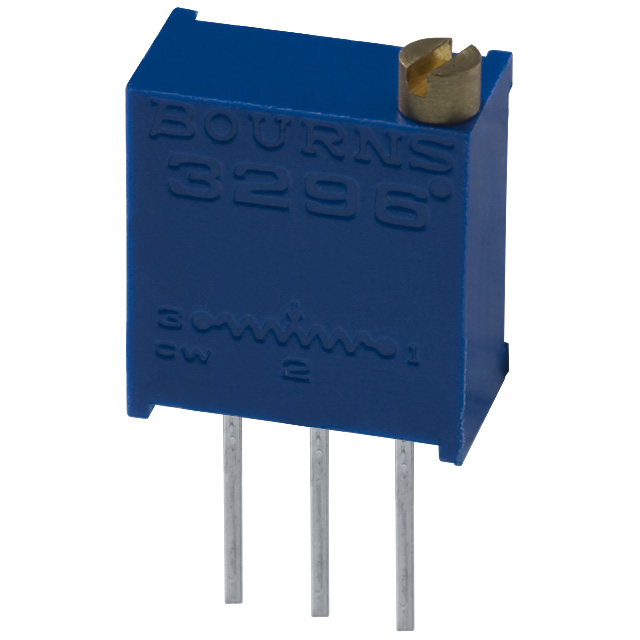

3296W-1-102LF

BOURNS  3296W-1-102LF  微调器,25转 1K

顶部调整 3296W 系列

Bourns 3296 系列方形微调电位计具有细长主体外形，采用密封设计，可耐受浸泡式板冲洗。它还具有的较大的螺旋槽，更易于调整。模制主体，带有内置支架。温度范围：55 °C 至 +125 °C

### 特点

多转/金属陶瓷/工业/密封

5 种端子类型

Chevron 密封设计

提供带装和卷装

欧时:
Bourns 3296W 系列 25 转 通孔 微调电阻器 3296W-1-102LF, 带针接端, 1kΩ ±10%, 1/2W, ±100ppm/°C

得捷:
TRIMMER 1K OHM 0.5W PC PIN TOP

立创商城:
1kΩ ±10%

艾睿:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 25ElecTurns 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Allied Electronics:
Trimmer; Cermet; Rest 1 Kilohms; PCB; 25 Turns; Pwr-Rtg 0.5W

安富利:
Res Cermet Trimmer 1K Ohm 10% 1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

TME:
Potentiometer: mounting; multiturn; 1kΩ; 500mW; THT; ±10%; linear

Verical:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 25ElecTurns 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Newark:
# BOURNS  3296W-1-102LF  Trimmer, Multiturn, 1 kohm, 500 mW, ± 10%, Trimpot 3296 Series, 25 Turns, Through Hole

MASTER:
Trimmer Potentiometer - 1K Ohm - 0.5W1/2W - 25ElecTurn - 9.53 X 4.83 X 11.55mm - Pin - Through Hole.

Electro Sonic:
Trimmer Potentiometer - 1K Ohm - 0.5W1/2W - 25ElecTurn - 9.53 X 4.83 X 11.55mm - Pin - Through Hole.

Win Source:
TRIMMER 1K OHM 0.5W PC PIN
