3299X-1-104LF

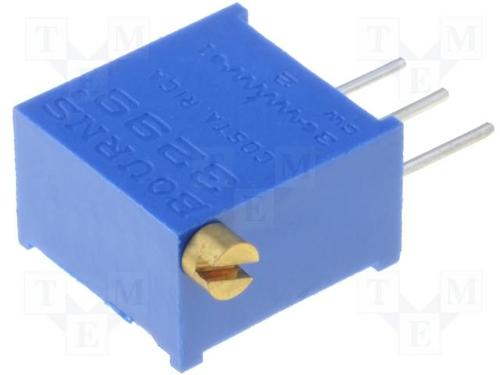

BOURNS  3299X-1-104LF  金属陶瓷电位器, 100千欧-1千欧 10% 0.5W 500V

Low noise, high performance 3⁄8" square trimmer. Infinite resolution cermet element. Low temperature coefficient ±100 ppm/°C over entire temperature and resistance range. Sealed to withstand wave soldering and cleaning processes.

立创商城:
3299X-1-104LF

得捷:
TRIMMER 100KOHM 0.5W PC PIN SIDE

e络盟:
金属陶瓷电位器, 100千欧-1千欧 10% 0.5W 500V

艾睿:
Res Cermet Trimmer 100K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube

Allied Electronics:
Trimmer; Cermet; Rest 100 Kilohms; PCB; 25 Turns; Pwr-Rtg 0.5W

Jameco:
Resistor Cermet Trimmer 100K Ohm 10% 0.5W 1/2W 25ElectricalTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole

Chip1Stop:
Res Cermet Trimmer 100K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube

TME:
Potentiometer: mounting; multiturn; 100kΩ; 500mW; THT; ±10%; linear

Verical:
Res Cermet Trimmer 100K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube

Newark:
# BOURNS  3299X-1-104LF  Trimmer Potentiometer, Through Hole, 100 kohm, 500 mW, ± 10%, 3299X Series, 25 Turns, Through Hole

MASTER:
Res Cermet Trimmer 100K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 100K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube
