3299Y-1-502LF

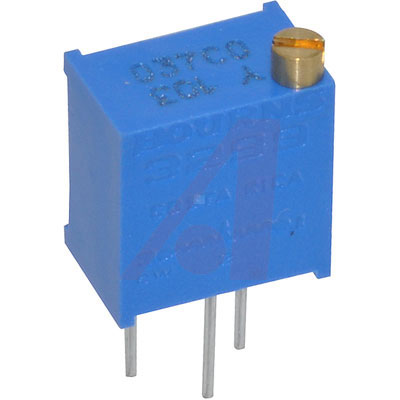

BOURNS  3299Y-1-502LF  微调电位器, 5KΩ, 25转

Low noise, high performance 3⁄8" square trimmer. Infinite resolution cermet element. Low temperature coefficient ±100 ppm/°C over entire temperature and resistance range. Sealed to withstand wave soldering and cleaning processes.

欧时:
TRIMMER - 3/8in SQ MT CERMET

贸泽:
Trimmer Resistors - Through Hole 5Kohms Standoffs Vertical Adjust 3/8"

艾睿:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Allied Electronics:
TRIMMER; CERMET; REST 5 KILOHMS; PCB; 25 TURNS; PWR-RTG 0.5W

Jameco:
Resistor Trimmer 5k Ohm 10% 1/2 Watt 25 Turn 2.29mm Pin Through Hole Tube

安富利:
Res Cermet Trimmer 5K Ohm 10% 1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Newark:
# BOURNS  3299Y-1-502LF  Trimmer, Multiturn, 5 kohm, 500 mW, ± 10%, Trimpot 3299 Series, 25 Turns, Through Hole

MASTER:
Trimmer Potentiometer - 5K Ohm - 0.5W1/2W - 25ElecTurn - 9.53 X 6.1 X 11.55mm - Pin - Through Hole.

Electro Sonic:
Trimmer Potentiometer - 5K Ohm - 0.5W1/2W - 25ElecTurn - 9.53 X 6.1 X 11.55mm - Pin - Through Hole.
