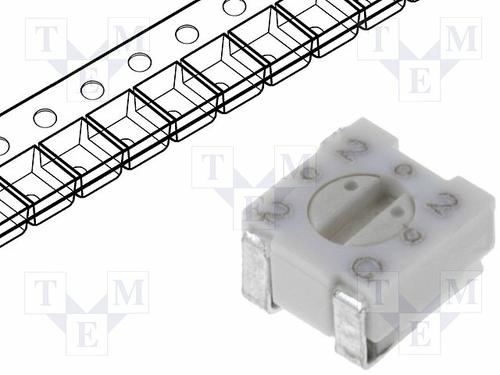

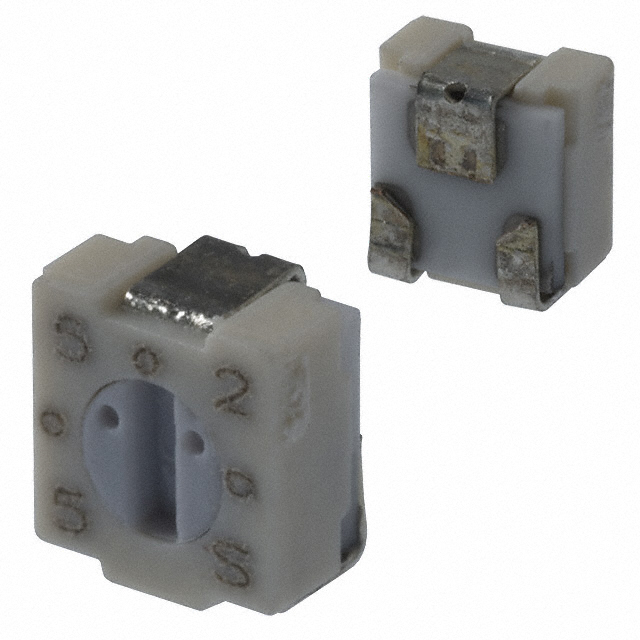

3313J-1-502E

3313J-1-502 5KΩ/Ohm 3X3-5K

值Resistance | 5KΩ/Ohm \---|--- 额定功率Power | 0.125W，1/8W 容差Tolerance | ±20% 温度系数Temperature Coefficient | ±150ppm/°C 圈数Number of Turns | 单圈 Single 调节类型Adjustment Type | 顶部调节 Top Adjustment 端子类型Termination Style | J引线 J Lead Description & Applications | ■ Surface Mount 3 mm Square Single-Turn Cermet / Sealed ■ Compatible with surface mount manufacturing processes ■ Rotor stop for "in-circuit" adjustment ■ 100 cycle rotational and seal life ■ 3313 - 3 mm Trimming Potentiometer 描述与应用 | ■表面贴装3毫米的单转金属陶瓷/密封 ■表面贴装制造工艺兼容 ■转子停止"电路"调整 ■100周期旋转和密封寿命 ■3313 - 3毫米微调
