3329H-1-103LF

BOURNS  3329H-1-103LF  微调电阻, 10K

金属陶瓷 6.35mm in. 500mW 顶部调整 3329H 系列

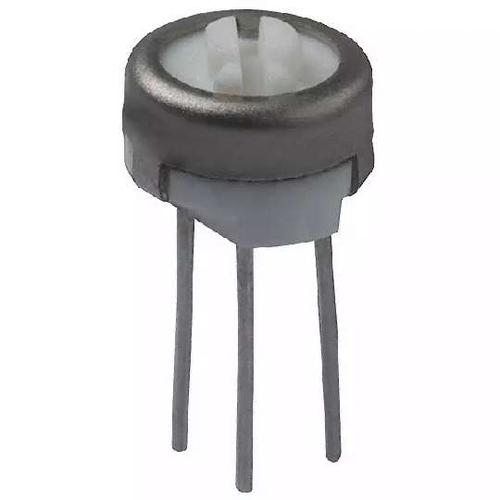

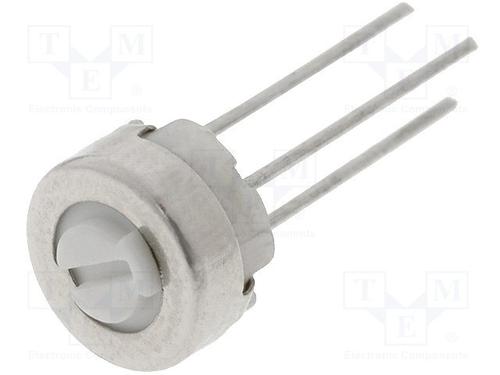

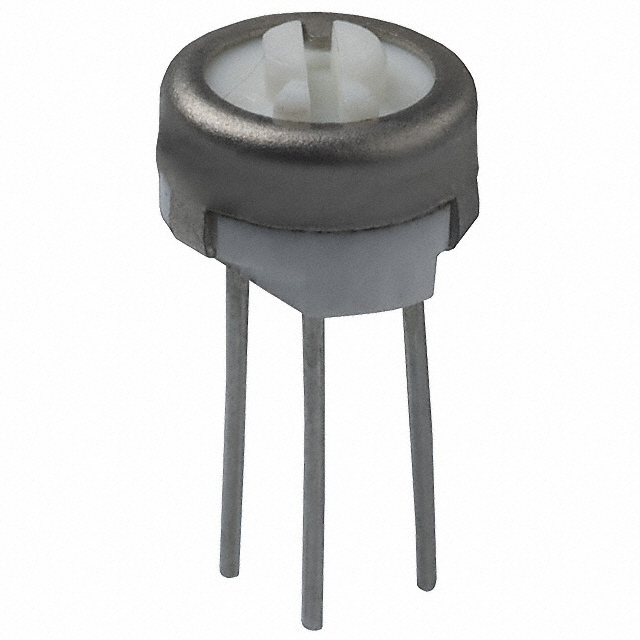

Bourns® 3329H 1/4" 圆形单转金属陶瓷微调电位计 Trimpot®

能够耐受波焊和集成电路清洗槽

欧时:
Bourns 3329H 系列 通孔 微调电阻器 3329H-1-103LF, 带针接端, 10kΩ ±10%, 1/2W, ±100ppm/°C

艾睿:
Infrequently adjust the resistor value for your circuit with this 3329H-1-103LF potentiometer from Bourns. This product has a resistance value of 10K Ohm. This part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This device utilizes cermet technology. This product is 4.57 mm tall with a diameter of 6.35 mm. This part has an operating temperature of -55 to 150 °C. The 3329H-1-103LF part has a pin termination style.

Allied Electronics:
Trimmer; Cermet; Rest 10 Kilohms; PCB; 1 Turn; Pwr-Rtg 0.5W; Dim 0.25InDiax0.18InH

安富利:
Res Cermet Trimmer 10K Ohm 10% 1/2W 1Elec/1MechTurn 6.35 X 4.57mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 6.35 X 4.57mm Pin Thru-Hole Tube

TME:
Potentiometer: mounting; single turn, horizontal; 10kΩ; 500mW

Verical:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 6.35 X 4.57mm Pin Thru-Hole Tube

Newark:
# BOURNS  3329H-1-103LF  Trimmer Potentiometer, Through Hole, 10 kohm, 500 mW, ± 10%, Trimpot 3329 Series, 1 Turns

MASTER:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 6.35 X 4.57mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 6.35 X 4.57mm Pin Thru-Hole Tube

Win Source:
TRIMMER 10K OHM 0.5W PC PIN
