10A 300V 延时型 盒装

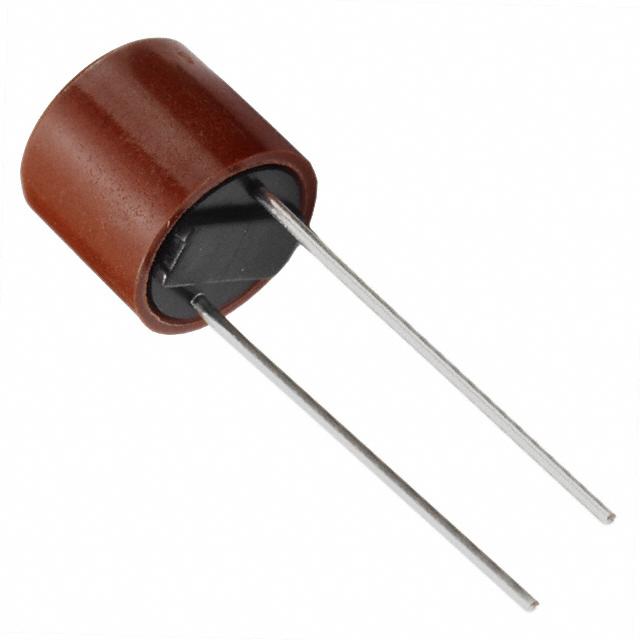

Be protected by adding a subminiature fuse developed by . This device has a current rating of 10. This device has a maximum power dissipation of 1.6 W. Its maximum power dissipation is 1.6 W. This fuse has an operating temperature range of -65 °C to 125 °C. It has 2 terminals. The 38321000000 fuse has a radial termination style. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 300 VAC. Its fuse is made from thermoplastic.
额定电压AC 300 V
额定电流 10 A
耗散功率 1.6 W
电阻 4.2 mΩ
工作温度Max 125 ℃
工作温度Min -65 ℃
耗散功率Max 1.6 W
额定电压 300 V
额定电压AC Max 300 V
安装方式 Through Hole
引脚数 2
封装 Radial, Can, Vertical
高度 8 mm
脚长度 18.8 mm
封装 Radial, Can, Vertical
工作温度 -65℃ ~ 125℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
