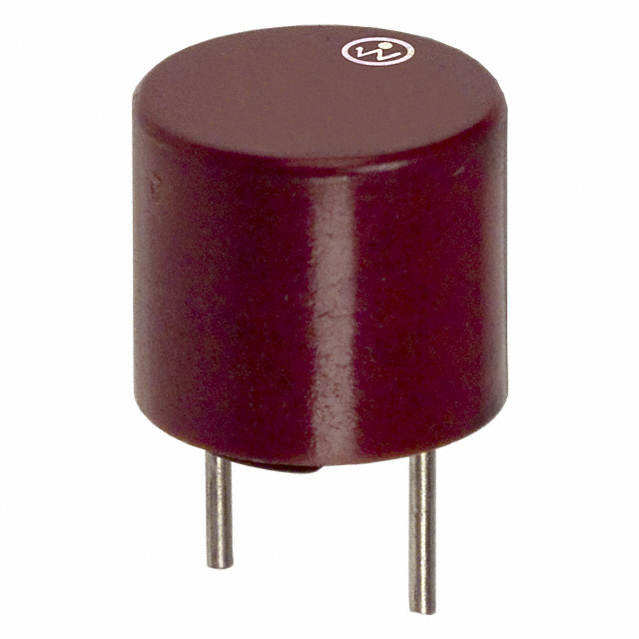

Fuse Subminiature Fast Acting 2.5A 250V Radial 8.5 X 8mm Ammo
2.5 A 250 V AC 直流 板安装（不包括管筒式） 通孔 径向，罐状，垂直
得捷:
FUSE BOARD MOUNT 2.5A 250VAC RAD
艾睿:
A great alternative to a circuit breaker, this a subminiature 37012500000 fuse from Littelfuse will protect your electronics. This device has a current rating of 2.5. This device has a maximum power dissipation of 0.66 W. Its maximum power dissipation is 0.66 W. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37012500000 fuse has a radial termination style. The maximum AC voltage rating is 250 VAC. This product is 8Max mm tall with a diameter of 8.5 mm.
Verical:
Fuse Subminiature Fast Acting 2.5A 250V Radial 8.5 X 8mm Ammo CCC/PSE/SEMKO/UL/VDE/cULus
额定电压DC 250 V
额定电压AC 250 V
额定电流 2.5 A
易燃性等级 UL 94 V-0
耗散功率 0.66 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.66 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
