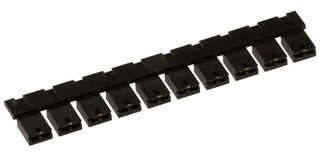

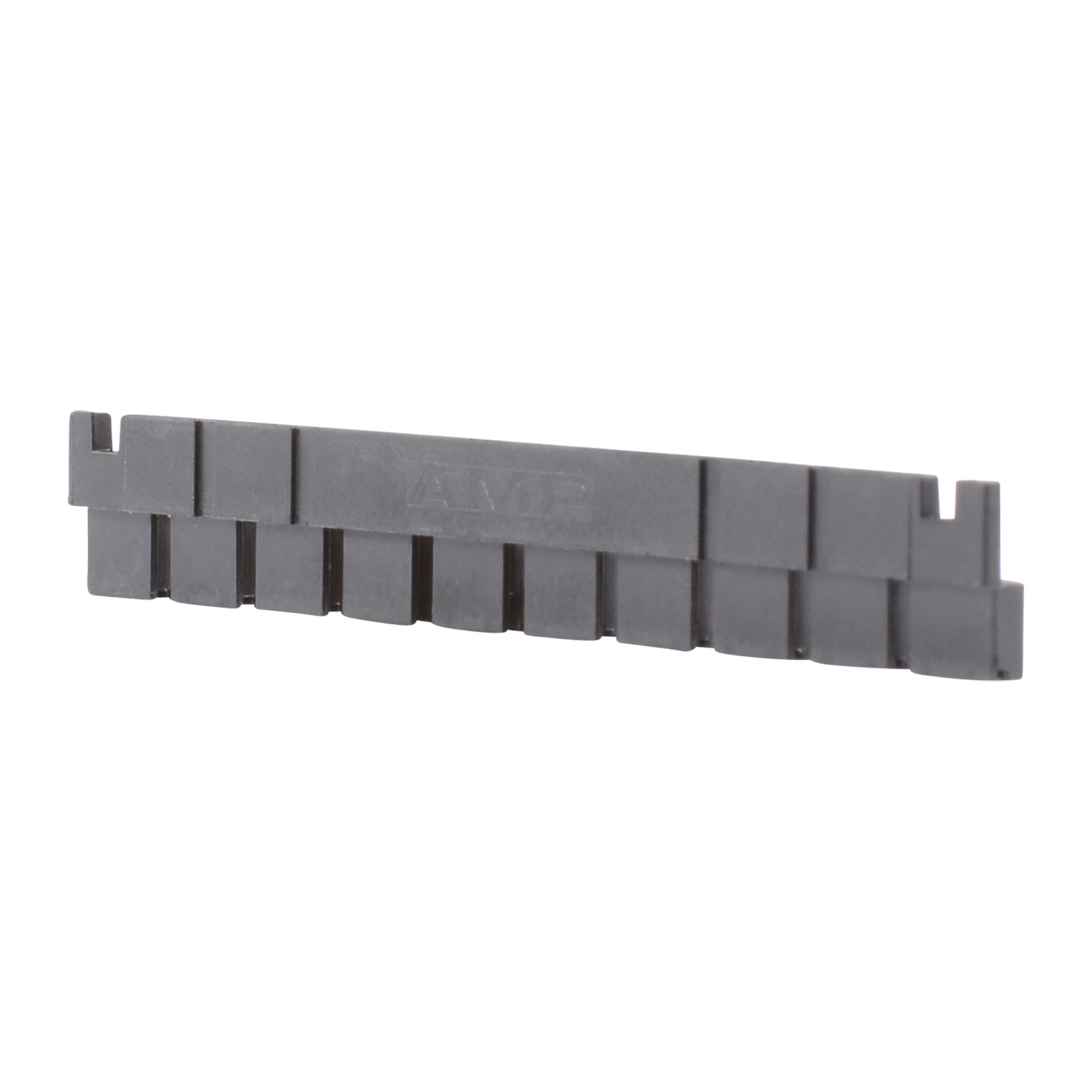

AMP FROM TE CONNECTIVITY 382575-2 跳线母线, 分流, Shunt, AMPMODU 交互连接系统, 2 路, 2 mm
2(1 x 2) 针位分路 黑色 顶部开口 0.079"(2.00mm) 镀金
得捷:
SHUNT 2MM 15AU 10PC = 1 STICK
贸泽:
Headers & Wire Housings 2MM MINI-SHUNT
e络盟:
跳线母线, 分流, 分流, AMPMODU 交互连接系统, 2 路, 2 mm
艾睿:
Thanks to TE Connectivity&s;s 382575-2 connector, you will be able to easily short-circuit or configure electronic components in many ways within your circuit. This RCP connector&s;s 2 contacts that are made out of beryllium copper and plated with gold over nickel. It has a maximum voltage rating of 200 VAC. Its pitch is 2 mm. It has a receptacle type gender. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. This product is 4 mm long, 2 mm tall and 3.56 mm deep. 382575-2 is housed in black polyester. This terminal block jumper has an operating temperature of -65 to 105 °C.
Allied Electronics:
Mini-Shunt Female Straight Black Shunt 2 Way 1 Row 2mm Pitch
Jameco:
Connector Shunt Recepticle 2 Position 2mm Straight Straightick
安富利:
Conn Shunt RCP 2 POS 2mm ST Stick
Verical:
Conn Shunt RCP 2 POS 2mm ST Box
Newark:
# AMP - TE CONNECTIVITY 382575-2 Jumper Busbar, Shunt, Shunt, AMPMODU Interconnection System, 2, 2 mm
MASTER:
MINI-SHUNT ASSY, 2mm
Powell:
Post Shunts
Online Components:
MINI-SHUNT ASSY, 2mm
Electro Sonic:
2MM MINI-SHUNT ASSEMBLY 15 AU
触点数 2
极性 Female
触点电镀 Gold
绝缘电阻 1000 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 2
触点额定电流 3.00 A
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 200 VAC
接触电阻Max 10 mΩ
安装方式 PCB
引脚间距 2.00 mm

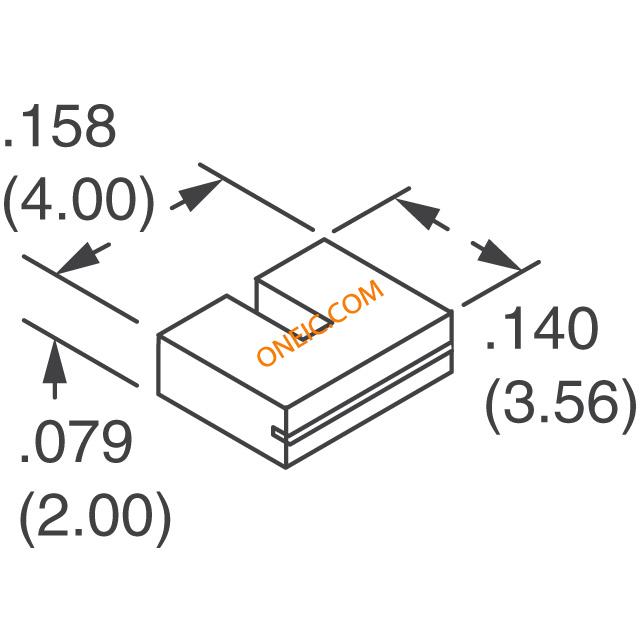

长度 4 mm
宽度 4.01 mm
高度 2 mm
引脚间距 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Box
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
382575-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
86730-101LF 法马通 | 功能相似 | 382575-2和86730-101LF的区别 |
2SN-BK-G 申泰电子 | 功能相似 | 382575-2和2SN-BK-G的区别 |
