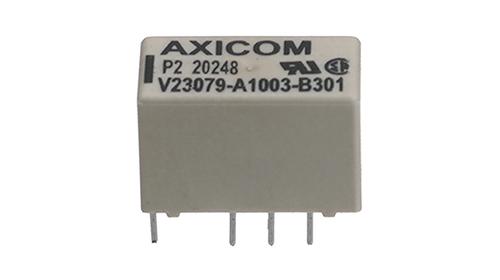

Signal Relay 12VDC 2A DPDT 14.5mm 7.2mm 9.8mm Through Hole Automotive Medical
V23079B1203B301
Product Highlights
V23079 / P2 Relay Series
DC Actuating System
Input Voltage = 12 VDC
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 2 Amps.
得捷:
V23079B1203B301
艾睿:
Signal Relay 12VDC 2A DPDT14.5x7.2x9.8mm THT Automotive Medical
安富利:
Electromechanical Relay DPDT 5A 12VDC 1.029KOhm Through Hole
TME:
Relay: electromagnetic; DPDT; Ucoil:12VDC; 0.5A/125VAC; 2A/30VDC
Verical:
Electromechanical Relay 12VDC 1.029KOhm 2A DPDT 14.5mm 7.2mm 9.8mm THT Signal Relay Automotive Medical
MASTER:
P2-2-T-Relay
Powell:
3G COM Relay P2
Online Components:
V23079B1203B301
Electro Sonic:
V23079B1203B301
触点电镀 Gold
额定电压DC 220 V
额定电压AC 250 V
绝缘电阻 >1000 MΩ
输入电压DC 12.0 V
触点类型 DPDT
功耗 140 mW
触点额定电流 2 A
线圈电压 12 VDC
线圈电流 11.66 mA
线圈功率DC 400 mW
线圈电阻 1029 Ω
额定电流Max 2 A
线圈电压DC 12 V
额定功率Max 60W, 62.5VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
接触电阻Max <50 mΩ
安装方式 Through Hole

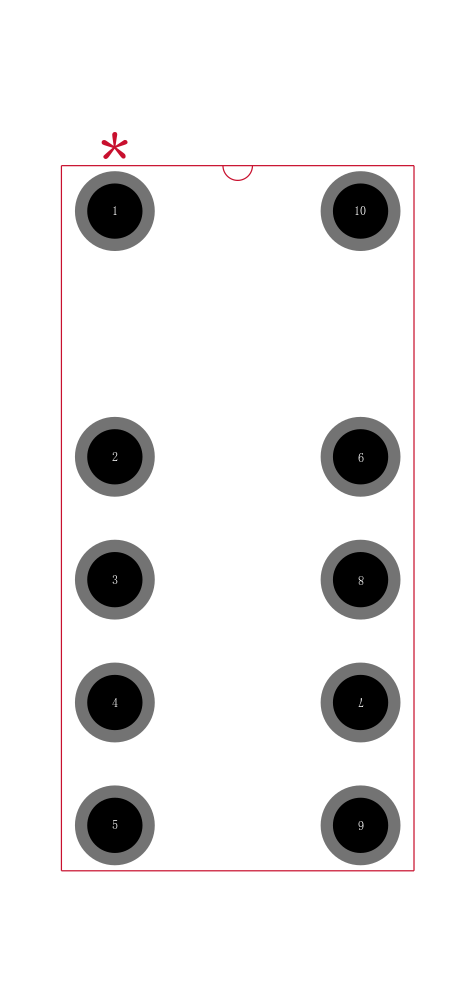

引脚数 10
封装 DIP
高度 9.8 mm
封装 DIP
触点材质 Silver Nickel, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
