2.54mm P数:44

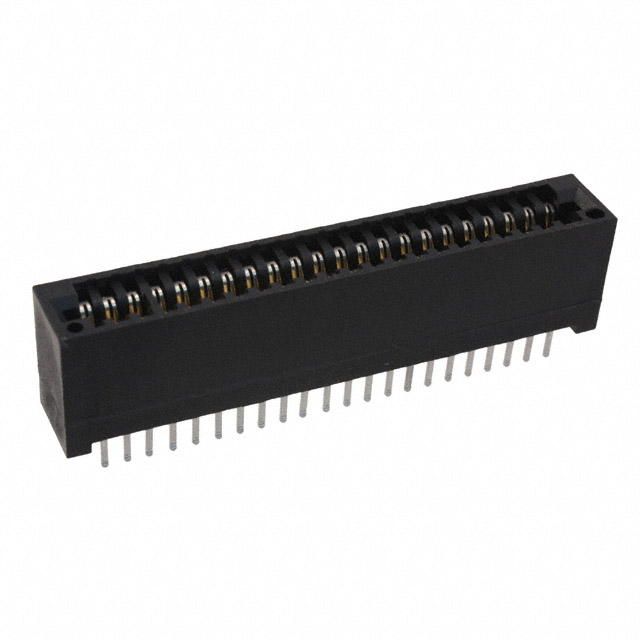

44 Position Female Connector Non Specified - Dual Edge Gold 0.100" 2.54mm Black
得捷:
CONN EDGE DUAL FMALE 44POS 0.100
立创商城:
2.54mm P数:44
贸泽:
Standard Card Edge Connectors 44P SOLDER TAIL 5.08mm ROW SPACE
Verical:
Conn Card Edge SKT 44 POS 2.54mm Solder ST Thru-Hole
MASTER:
395 Series .100" 2.54mm contact spacing Card Edge Connector with 44 P.C Tail type contacts. The tails are .030" x .018" 0.76mm x 0.46mm thick and .175" 4.45mm long in a Double Row formation. The Insulator is Green in color and has Flush Mounting L
Electro Sonic:
395 Series .100" 2.54mm contact spacing Card Edge Connector with 44 P.C Tail type contacts. The tails are .030" x ...
触点数 44
极性 Female
触点电镀 Gold
排数 2
易燃性等级 UL 94 V-0
针脚数 44
额定电流Max 3 A
接触电阻Max 10 mΩ
安装方式 Through Hole
封装 -
引脚间距 2.54 mm
长度 62.5 mm
宽度 9.40 mm
高度 15.24 mm
封装 -
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Copper, Nickel, Tin Alloy
工作温度 -65℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
