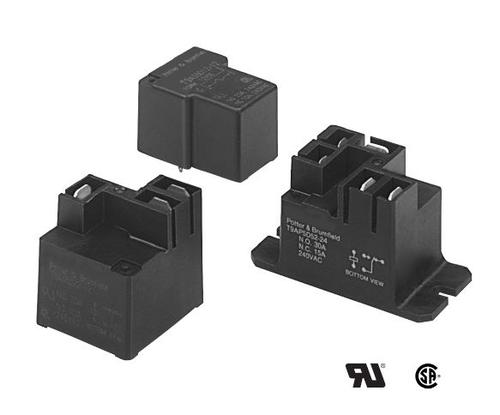

T9A 系列 30 A 单刀双掷 5 VDC PCB安装 通用 功率继电器
* 30A switching in 1 form A NO and 20A in 1 form C CO * Plastic sealed case available * Meets UL 508 and 873 spacing - 3.18mm through air, 6.36mm over surface * Option for load connections via 0.250”” 6.35mm Q.C. terminals * UL class F insulation system standard
艾睿:
Electromechanical Relay 5VDC 25Ohm 20NO/10NCA SPDT 32.51mm 27.43mm 20.4mm THT Industrial Relay
安富利:
Electromechanical Relay SPDT 20NO/10NCA 5VDC 25Ohm Through Hole
Verical:
Electromechanical Relay 5VDC 25Ohm 20NO/10NCA SPDT 32.51mm 27.43mm 20.4mm THT Industrial Relay
MASTER:
T9AS5D12-5
Powell:
Power PCB Relays
Online Components:
T9AS5D12-5
Electro Sonic:
T9AS5D12-5
额定电压DC 28 V
额定电压AC 277 V
输入电压DC 5.00 V
触点类型 SPDT
触点额定电流 30.0 A
线圈电流 200 mA
线圈功率DC 1.00 W
线圈电阻 25 Ω
线圈电压DC 5 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 28 V
额定电压AC Max 277 V
安装方式 Through Hole
引脚数 5
高度 20.4 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
