12VDC 2A 无锁存
** 150 Grid-Space Micro-miniature Relays**

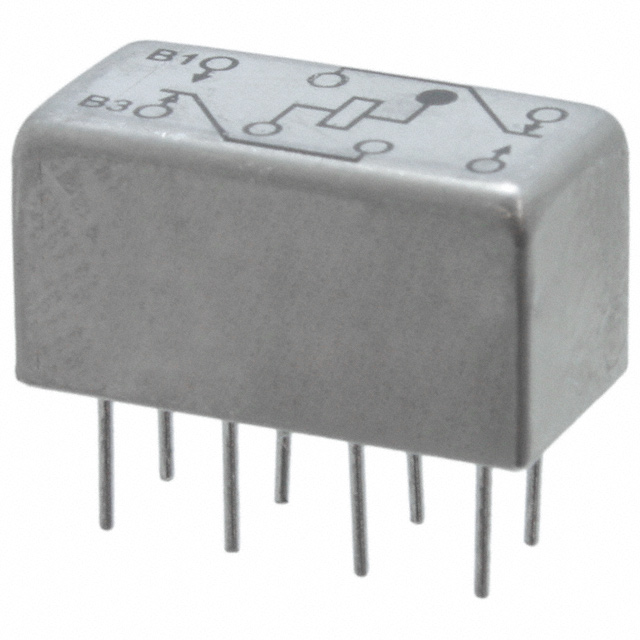

TE Connectivity"s 3SBC and 3SBH series of micro-miniature relays are only 0.32 inches high to save space in electronic packaging. The pin spacing allows relay insertion with no intermediate pin spreaders.
得捷:
RELAY GEN PURPOSE DPDT 2A 12VDC
立创商城:
12VDC 2A 无锁存
艾睿:
Signal Relay 12VDC 2A DPDT THT
Allied Electronics:
RELAY, HIGH PERFORM., DPDT, 12VDC, 210 OHM, 686MW, PC BOARD, M39016/13-056M
Chip1Stop:
Electromechanical Relay DPDT 2A 12VDC 210Ohm Through Hole
Verical:
Electromechanical Relay 12VDC 210Ohm 2A DPDT 15.49x7.87x8.13mm THT Military Relay
Newark:
# CII - TE CONNECTIVITY 3SBC1517A2 Power Relay, DPDT, 12 VDC, 2 A, 3SBC Series, Through Hole, Non Latching
MASTER:
Electromechanical Relay 12VDC 210Ohm 2A DPDT 15.49x7.87x8.13mm THT Military Relay
Online Components:
Electromechanical Relay 12VDC 210Ohm 2A DPDT 15.49x7.87x8.13mm THT Military Relay
额定电压DC 28 V
额定电流 2 A
输入电压DC 12.0 V
触点类型 DPDT
触点额定电流 2 A
线圈电压 12 VDC
线圈电流 57.14 mA
线圈功率DC 686 mW
线圈电阻 210 Ω
额定电流Max 2 A
线圈电压DC 12 V
线圈功率 686 mW
开关电流Max 2 A
工作温度Max 125 ℃
工作温度Min -65 ℃
额定电压 12 VDC
额定电压DC Max 28 V
安装方式 Through Hole
引脚数 8
封装 DIP
长度 15.49 mm
宽度 7.87 mm
高度 8.13 mm
封装 DIP
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
军工级 Yes
ECCN代码 EAR99
HTS代码 8536410050
