DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
DIP SPST 6 位置 通孔 摇臂 触动器 60mA 5VDC
艾睿:

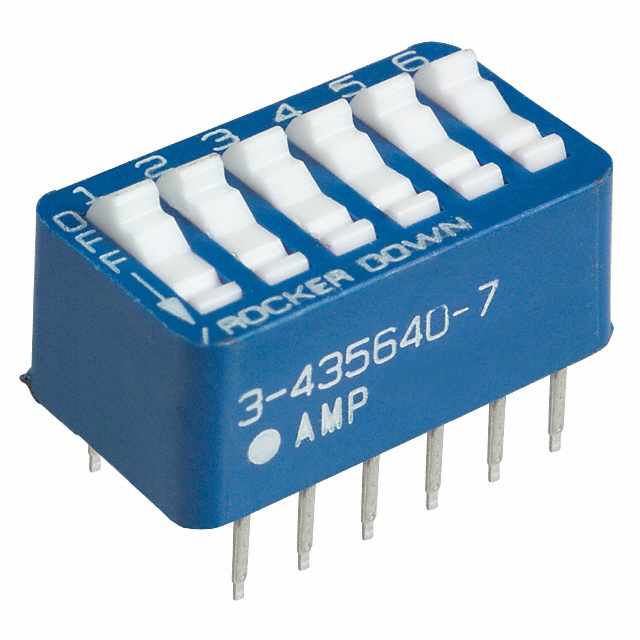

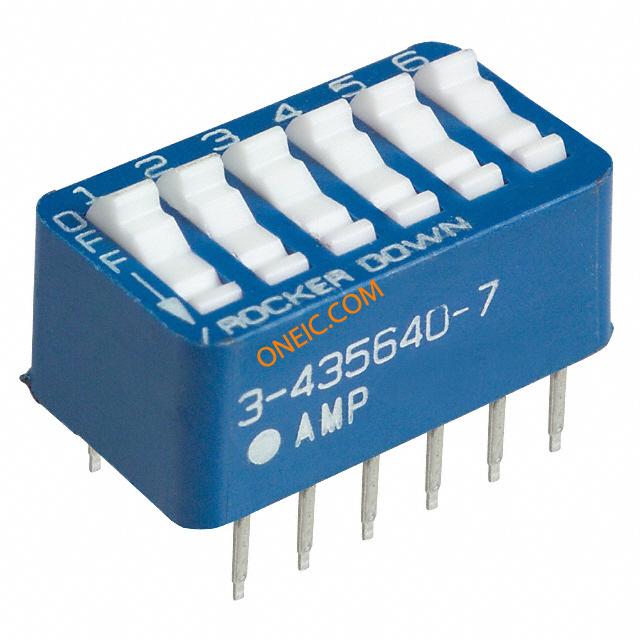

By acting as a series of switches, the 3-5435640-7 dual in-line package switch from TE Connectivity is the ideal component for use on a printed circuit board. It has a SPST configuration. The 3-5435640-7 DIP switch has a PC pin termination style. This product is 17.27 mm long, 8.64 mm tall and 9.65 mm deep. This product&s;s terminal pitch is 2.54 mm.
Allied Electronics:
6 Way Through Hole DIP Switch SPST, Rocker Actuator
安富利:
Switch DIP OFF ON SPST 6 Raised Rocker PC Pins 2.54mm Thru-Hole Loose Piece
Chip1Stop:
Switch DIP OFF ON SPST 6 Raised Rocker PC Pins 2.54mm Thru-Hole Loose Piece
Verical:
Switch DIP OFF ON SPST 6 Raised Rocker PC Pins 2.54mm Thru-Hole Tube
Newark:
# AMP - TE CONNECTIVITY 3-5435640-7 DIP SW 6 POSN SEALED New
MASTER:
SWITCH ASSY, DIP, TYPE C, 7100 SERIES, SPST, STANDARD
Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
Electro Sonic:
DIP SW 6 POSN SEALED
触点电镀 Tin
接触器类型 Rocker
额定电流 60 mA
方向 Vertical
触点类型 SPST
针脚数 6
额定电压 5 VDC
安装方式 Through Hole
引脚间距 2.54 mm

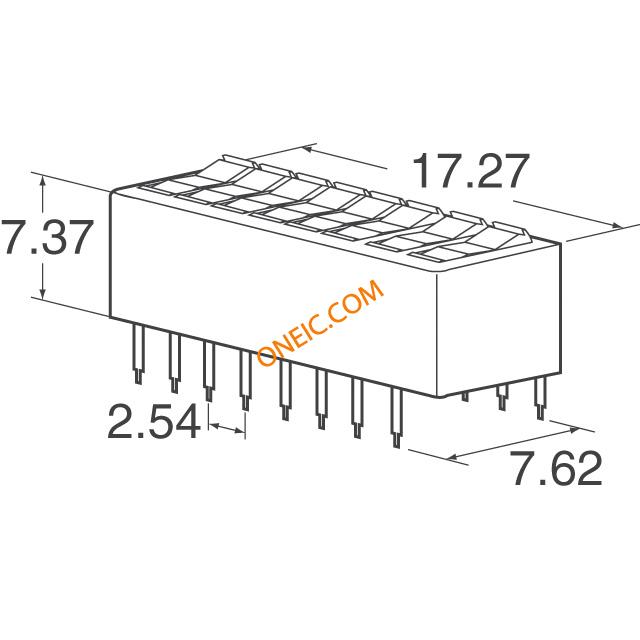

长度 17.27 mm
宽度 9.65 mm
高度 8.64 mm
引脚间距 2.54 mm
外壳颜色 Blue
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
