3414NHH

EBM PAPST  3414NHH  轴流风扇, 管轴式, 方形, 接线引脚, 滚珠, 3400N系列, 24 VDC, 92 mm, 25 mm, 60 cu.ft/min, 102 m³/h

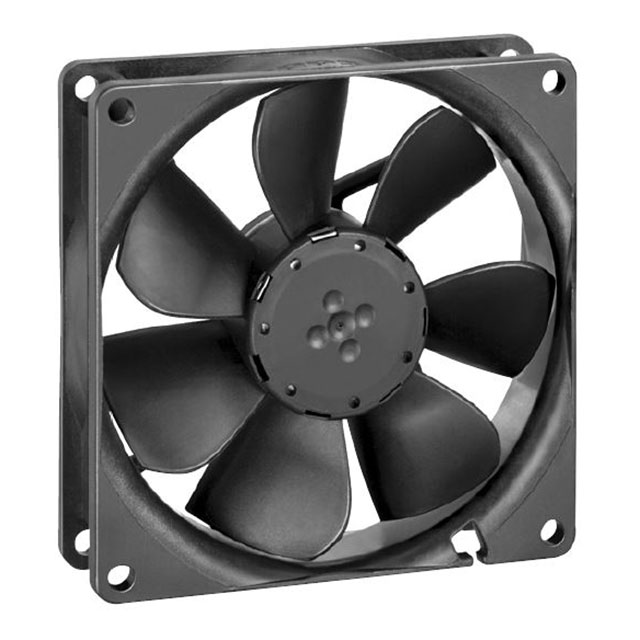

The is a 24VDC standard or basic high speed Axial Fan with alarm signal, ball bearing and wire leaded power connection. Fibreglass-reinforced plastic PBT housing and fibreglass-reinforced plastic PA impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 24AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

3250RPM Speed rating

.

3.1W Rated power

.

-20 to 70°C Maximum ambient temperature range

.

Protected against reverse polarity and locking
