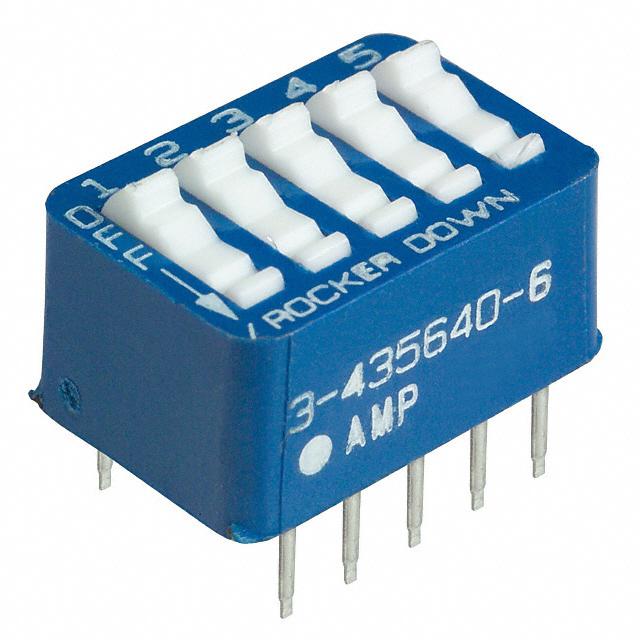

5 位置 单刀单掷 摇臂 密封 2.54 mm 中心线 通孔 DIP 开关
DIP SW 5 POSN SEALED
Product Highlights
DIP Switch
PCB Mount Style = Through Hole
Single Pole - Single Throw Configuration Pole-Throw
Actuator Style = Rocker Top Actuated
Sealed
艾睿:
Add push button-type user control to your printed circuit board using the 3-435640-6 dual in-line package switch from TE Connectivity. It has a SPST configuration. This device has a maximum current rating of 0.06 A @ 5VDC. This DIP switch has an operating temperature range of -55 °C to 105 °C. The 3-435640-6 DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. This product is 14.73 mm long, 8.64 mm tall and 9.65 mm deep. The maximum DC voltage rating is 24 VDC.
安富利:
Switch DIP OFF ON SPST 5 Raised Rocker PC Pins 2.54mm Thru-Hole Loose Piece
富昌:
5 位置 单刀单掷 摇臂 密封 2.54 mm 中心线 通孔 DIP 开关
Chip1Stop:
Switch DIP OFF ON SPST 5 Raised Rocker PC Pins 2.54mm Thru-Hole Loose Piece
Verical:
Switch DIP OFF ON SPST 5 Raised Rocker 0.06A 24VDC PC Pins 2.54mm Thru-Hole Package
MASTER:
DIP SW 5 POSN SEALED
Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
Online Components:
DIP SW 5 POSN SEALED
Electro Sonic:
DIP SW 5 POSN SEALED
触点电镀 Gold, Gold over Nickel
额定电压DC 24 V
接触器类型 Rocker
额定电流 60 mA
方向 Vertical
触点类型 SPST
易燃性等级 UL 94 V-0
针脚数 5
额定电流Max 0.06A @5VDC
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 5 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 DIP
引脚间距 2.54 mm
长度 14.73 mm
宽度 9.65 mm
高度 8.64 mm
封装 DIP
引脚间距 2.54 mm
外壳颜色 Blue
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
