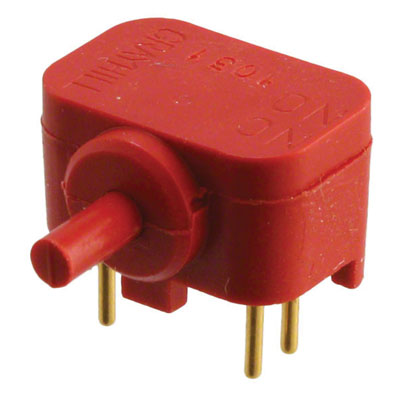

39-251 RED

GRAYHILL  39-251 RED  按钮开关

Butt contact pushbutton switches.

立创商城:
39-251 RED

e络盟:
开关, 按钮, SPDT, 150MA, 220V

艾睿:
Ideal for quick switching situations this 39-251 RED push button switch manufactured from Grayhill is a must. It has a SPDT configuration. This device has a maximum current rating of 0.25 A @ 115VAC. This push switch has an operating temperature range of -40 °C to 125 °C. The 39-251 RED push switch has a PC pin termination style. The maximum AC voltage rating is 220 VAC and the maximum DC voltage rating is 28 VDC. This product is 12.7 mm long, 8.33 mm tall and 15.24 mm deep.

Allied Electronics:
Switch, Pushbutton, SPDT, RED BUTTON, 0.25 A @ 115 V RES

Jameco:
Push Button Switch N.O.-N.C. Single Pole Double Throw Round Plunger 0.25 Amp 220 Volt AC 28 Volt Momentary Contact Pc Pins Through Hole

安富利:
Switch Push Button N.O./N.C. SPDT Round Plunger 0.25A 220VAC 28VDC Momentary Contact PC Pins Thru-Hole

Chip1Stop:
Switch Push Button N.O./N.C. SPDT Round Plunger 0.25A 220VAC 28VDC Momentary Contact PC Pins Thru-Hole

Verical:
Switch Push Button N.O./N.C. SPDT Round Plunger 0.25A 220VAC 28VDC Momentary Contact PC Pins Thru-Hole

Newark:
# GRAYHILL  39-251 RED  Pushbutton Switch, On, SPDT, 220 V, 28 V, 150 mA, Through Hole
