Cable, Shielded; 3; 24AWG; 19 x 36; 0.16in.; 0.01in.; 0.016in.; PVC; 600V

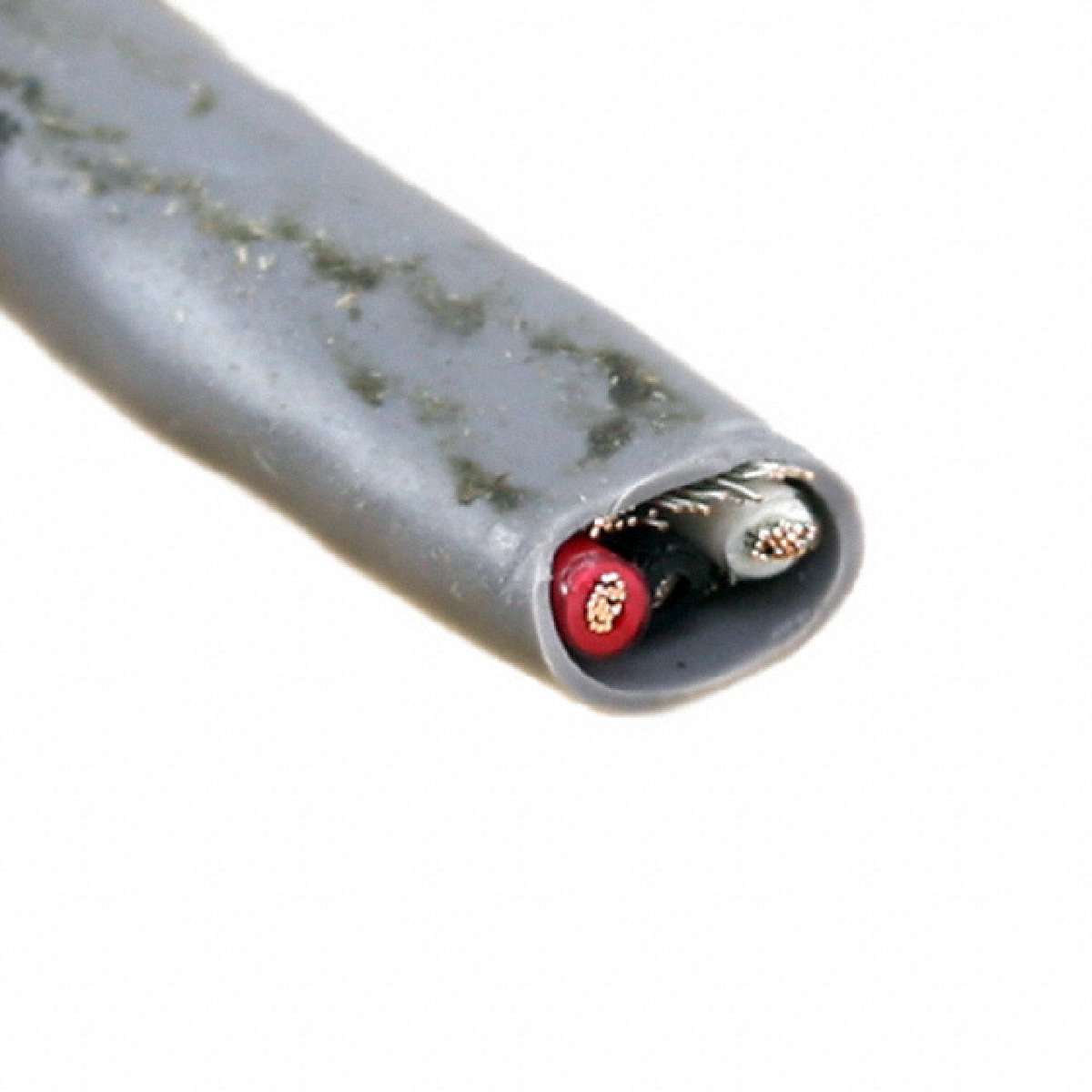

The is a 3-core Shielded Cable with tinned copper conductor and a PVC/nylon insulator. This multi-core cable comes with a slate PVC jacket and tinned copper braid shield 90% minimum coverage. A braided copper shield provides good protection against higher frequency EMI.
- .
- 15.1lbs Maximum pull tension
- .
- 70pf/ft at 1kHz Nominal ground capacitance
- .
- 0.2µH/ft Nominal inductance
线规 24 AWG
额定电压DC 600 V
屏蔽 Yes
芯数 3
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 600 V
长度 30.5 m
颜色 Slate
绝缘材质 PVC
工作温度 -55℃ ~ 105℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Sensing & Instrumentation, Security, Consumer Electronics, Automation & Process Control, Computers & Computer Peripherals, Audio, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
3212 SL005 Alpha Wire | 当前型号 | 当前型号 |
3212 SL001 Alpha Wire | 完全替代 | 3212 SL005和3212 SL001的区别 |
3212 SL002 Alpha Wire | 完全替代 | 3212 SL005和3212 SL002的区别 |
5877 BR005 Alpha Wire | 功能相似 | 3212 SL005和5877 BR005的区别 |
