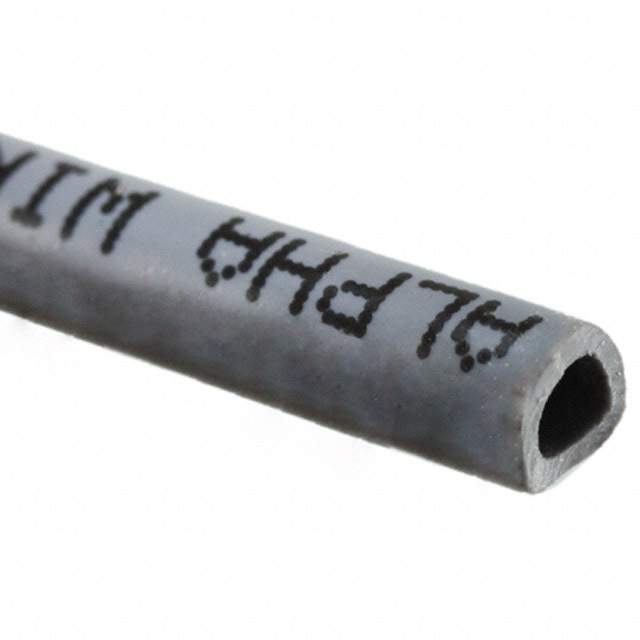

ALPHA WIRE 3467C SL005 Multiconductor Unshielded Cable, 7, 28AWG, 0.089mm , 7 x 0.127mm, 100Ft, 30.5m
The is a 7-core Shielded Cable with tinned copper conductor and a semi-rigid PVC insulator. This multi-core cable comes with a slate PVC jacket, aluminium/Mylar tape shield, foil facing outward and tinned copper braid shield 65% coverage. A combination of foil and braid gives the best EMI protection across a wide frequency range.
- .
- 13.6lbs Maximum pull tension
- .
- 45pf/ft at 1kHz Nominal ground capacitance
- .
- 0.22µH/ft Nominal inductance
- .
- 66R/1000ft at 20°C Nominal conductor DC resistance DCR
线规 28 AWG
额定电压DC 300 V
易燃性等级 UL VW-1
屏蔽 Yes
芯数 7
额定电压 300 V
长度 30.5 m
颜色 Slate
绝缘材质 PVC
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Sensing & Instrumentation, Security, Automation & Process Control, Consumer Electronics, Computers & Computer Peripherals, Audio, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
