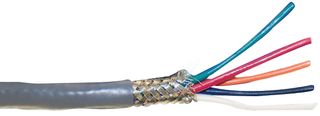

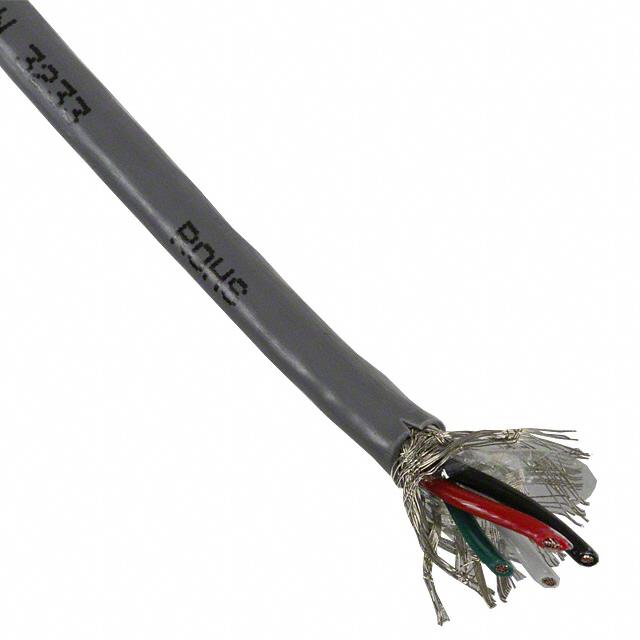

ALPHA WIRE 3304 SL005 Multiconductor Shielded Cable, Control, Slate, 4Conductor, 28AWG, 0.09mm², 100Ft, 30.5m
The is a 4-core Shielded Cable with tinned copper conductor and a PVC insulator. This multi-core cable comes with a slate PVC jacket and tinned copper braid shield 90% minimum coverage. A braided copper shield provides good protection against higher frequency EMI.
- .
- 8.8lbs Maximum pull tension
- .
- 63pf/ft at 1kHz Nominal ground capacitance
- .
- 0.22µH/ft Nominal inductance
线规 28 AWG
额定电压DC 600 V
屏蔽 Yes
芯数 4
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
额定电压 600 V
长度 30.5 m
颜色 Slate
绝缘材质 PVC
工作温度 -55℃ ~ 105℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Computers & Computer Peripherals, Consumer Electronics, Portable Devices, Automation & Process Control, Communications & Networking, Security, Audio, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
