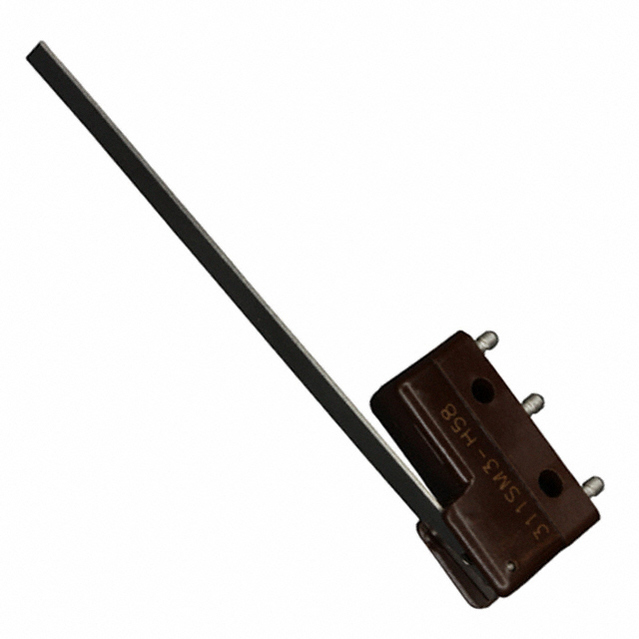

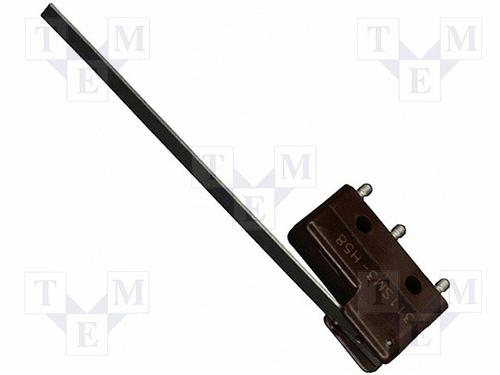

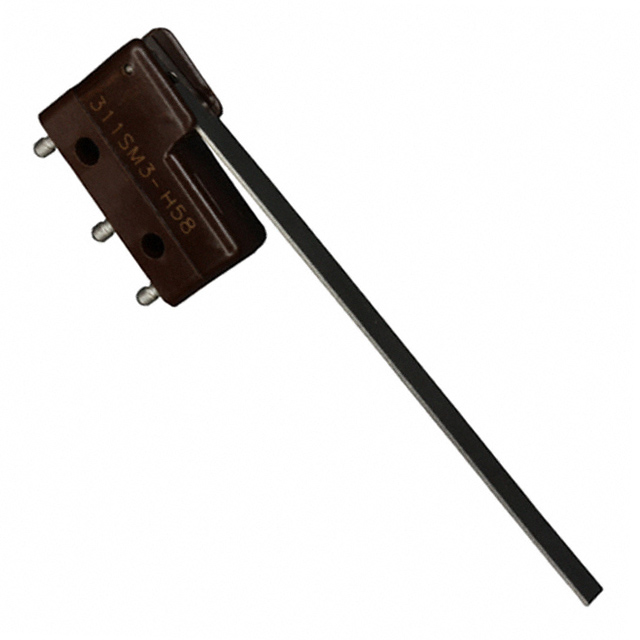

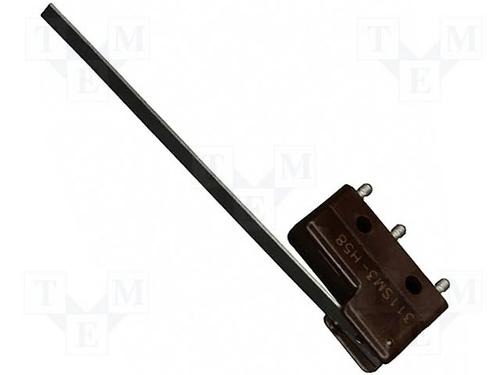

HONEYWELL 311SM3-H58 微型开关
The SM series MICRO SWITCH™ subminiature Basic Switch combines small size and light weight with ample electrical capacity, precision operation and long life. It is used for simple or precision on/off application needs in appliances, timing devices, office equipment, valves, vending machines and manually operated devices.
- .
- Long operating life
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- UL/CSA, cUL, ENEC and CE Approvals
- .
- -54 to 121°C Operating temperature range
- .
- Choice of actuation plunger, integral and auxiliary actuators
- .
- Choice of electrical termination solder, quick connect, PCB
额定电压DC 30 V
接触器类型 Straight Lever
额定电压AC 250 V
额定电流 5 A
触点类型 SPDT
针脚数 2
额定电流Max 5 A
工作温度Max 121 ℃
工作温度Min -53 ℃
额定电压 250 VAC
额定电压DC Max 30 V
安装方式 Quick Connect
长度 19.84 mm
高度 12.52 mm
触点材质 Silver
工作温度 -53℃ ~ 121℃
产品生命周期 Active
包装方式 Bulk
制造应用 测试与测量, 通信与网络, 国防, Sensing & Instrumentation, 传感与仪器, 医用, Test & Measurement, Medical, Computers & Computer Peripherals, Communications & Networking, Aerospace, Defence, Military, HVAC, 军用与航空, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
HTS代码 8536509055
