Basic / Snap Action / Limit Switches 1W 5MOhm 350V PC +/-20%TOL,+/-5% LIN
is manufactured by Sensing and is categorized in the Snap Action, Limit Switches category. 311SM6 is described as SWITCH SNAP ACTION SPDT 5A 250V. Perfect Parts is a supplier of Switches and other Electromechanicals.
艾睿:

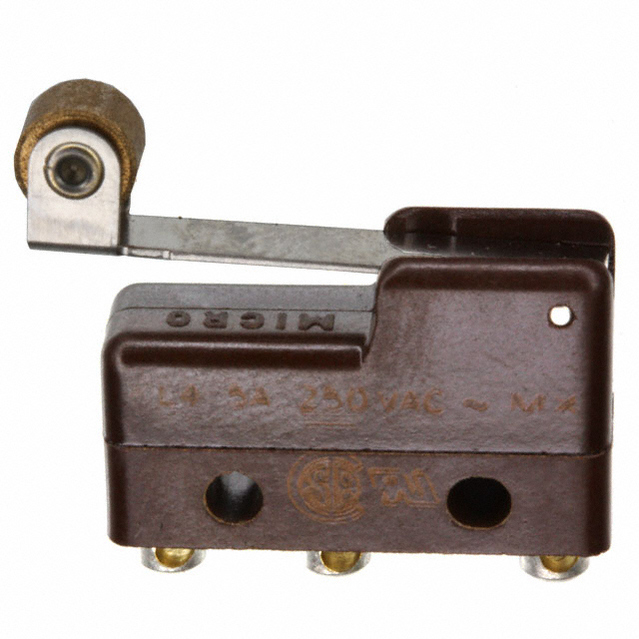

This 311SM6 snap-action switch from Honeywell can be actuated with very little physical force. This device has a maximum current rating of 5. It has a SPDT configuration. This snap action switch has an operating temperature range of -53 °C to 121 °C. The 311SM6 snap action switch has a quick connect termination style. This product is 23.43 mm long, 21.13 mm tall and 6.35 mm deep. The maximum AC voltage rating is 250CE/CSA/KEMA/UL VAC and the maximum DC voltage rating is 30 VDC.
Allied Electronics:
Subminiature Basics
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect 5A 250VAC 30VDC 0.39N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect 5A 250VAC 30VDC 0.39N Screw Mount
Newark:
# HONEYWELL 311SM6 Microswitch, SM Series, SPDT, Solder, 5 A, 250 VAC, 30 VDC
MASTER:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 0,39 N [1.4 oz] Maximum Operating Force, 6,38 mm [0.25 in] Integral Roller Lever Actuator, Thru-Hole Solder Termination, 9,5 mm [0.38 in] Mounting Centers,
Electro Sonic:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 0,39 N [1.4 oz] ...
