HONEYWELL 311SX5-T 微动开关

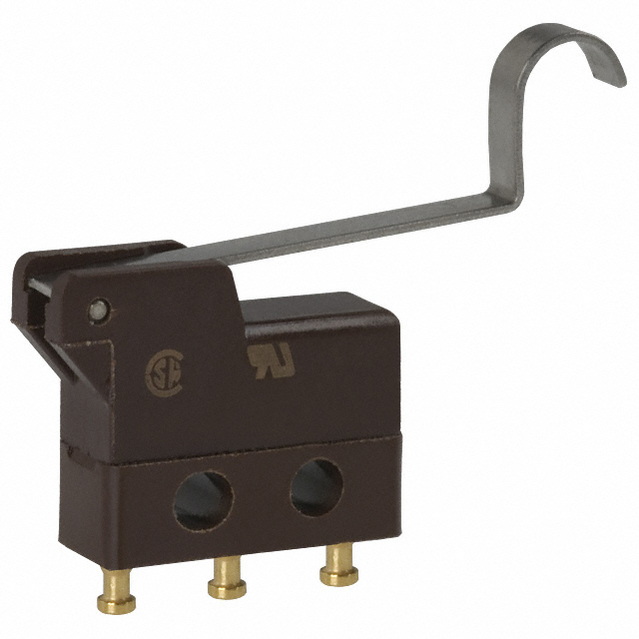

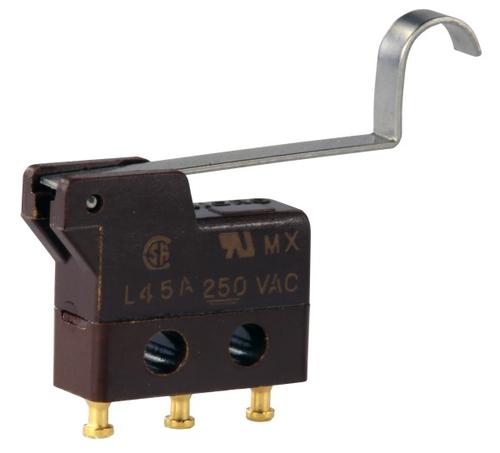

The is a single-pole double-throw SPDT premium subminiature Basic Microswitch with a simulated roller lever actuator, solder terminals and ON/OFF function. The MICRO SWITCH™ SX series is a small, precision snap action switch that is ideal where savings in space and weight are important. The SX series lower operating force provides for application versatility. This series offers gold contacts for low energy switching and bifurcated gold contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SX switch.
- .
- Designed for repeatability and enhanced product life
- .
- Long operating life
- .
- -54 to 204°C Temperature range
- .
- Compact and robust
额定电压DC 28 V
接触器类型 Roller Lever
额定电压AC 125 V
额定电流 5 A
触点类型 SPDT
针脚数 2
触点额定电流 5.00 A
额定电流Max 5 A
工作温度Max 121 ℃
工作温度Min -54 ℃
额定电压 250 VAC
安装方式 Chassis
长度 11.7 mm
高度 19.46 mm
触点材质 Silver
工作温度 -54℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Communications & Networking, Avionics, Test & Measurement, 医用, Medical, 通信与网络, HVAC, Consumer Electronics, 计算机和计算机周边, Computers & Computer Peripherals, 测试与测量, 航空电子, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
