32NT91-3

????????交互式目录补充目录PDF文件 Interactive Catalog Supplements Catalog PDFs

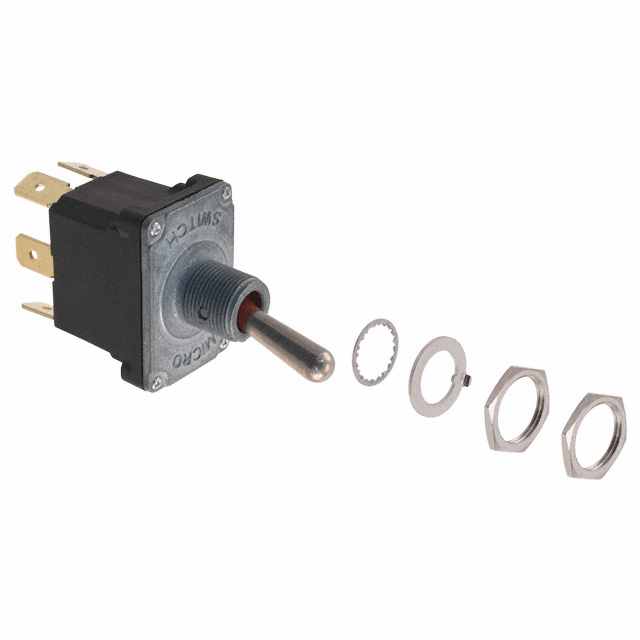

The is a double-pole double-throw DPDT Toggle Switch with a standard lever and gold plated silver alloy contacts. This NT series toggle switch supports 15/32-inch bushing mounting and quick-connect termination. This MICRO SWITCH™ toggle switch meets the need for a rugged, cost-effective toggle switch. Quality construction features include a seal between the toggle lever and bushing and between the cover and case. This switch can be used where panels are subject to splashes, hosedowns or outdoor environments. The "Easy-Start" threaded bushing enables quick alignment of mounting nut to decrease the chance of cross threading. The panel stand-off with O-ring feature available on some listings, eliminates the need for behind-the-panel hardware, provides uniform panel height and provides a panel to cover seal. This Switch is capable of withstanding a temperature of 160°F continuously at full rated load.

.

Completely sealed switching chamber

.

IP67/IP68 Sealing protection rating

.

-40 to 71°C Operating temperature range

Do not use these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
