3110KL-05W-B40-D00概述

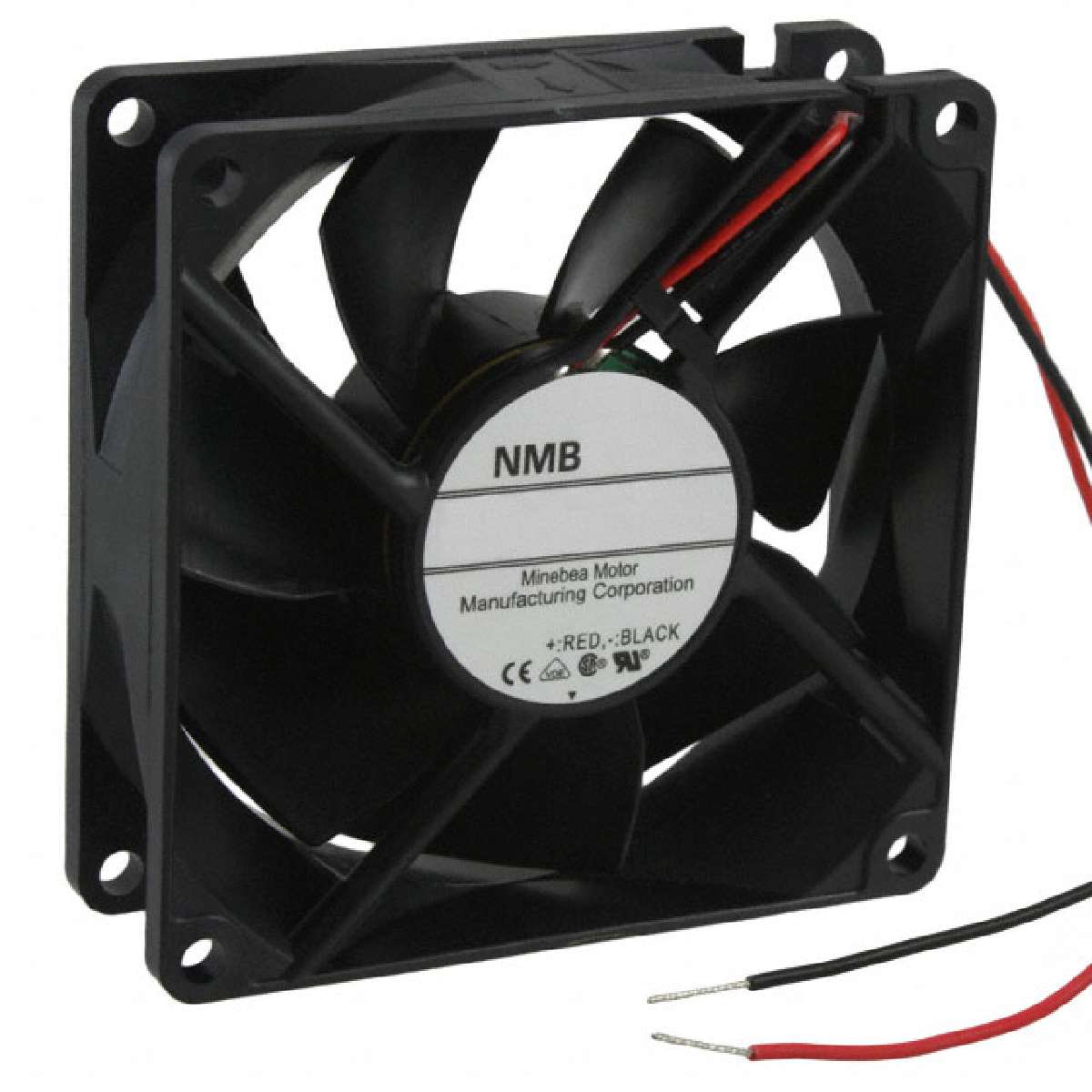

DC Fan Axial Ball Bearing 24V 10V to 27.6V 35.3CFM 31dB 80 X 80 X 25mm

The is a 24VDC Axial Fan with ball bearing and wire leaded power connection. This K-series axial fan comes with plastic black casing and impeller. UL1007, 24AWG red + and black - lead wire. Clockwise direction of rotation, air out over struts. Brushless type DCM motor function, standard special control function and standard model flanged mounting. Can be an integral part of a cooling solution for heat-generating purpose.

3110KL-05W-B40-D00中文资料参数规格
技术参数

电源电压DC 24.0 V

额定电压DC 24.0 V

额定电流 100 mA

额定功率 2.4 W

输入电压DC 24.0 V

工作温度Max 70 ℃

工作温度Min -10 ℃

额定电压 24 VDC

电源电压 24 V

外形尺寸

宽度 25.00 mm

高度 25 mm

物理参数

重量 94.8 g

工作温度 -10℃ ~ 70℃

其他

产品生命周期 Active

寿命(小时) 70000h @25℃

制造应用 HVAC

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买3110KL-05W-B40-D00
型号: 3110KL-05W-B40-D00
制造商: NMB Technologies
描述:DC Fan Axial Ball Bearing 24V 10V to 27.6V 35.3CFM 31dB 80 X 80 X 25mm
