3115FS-12T-B30-A00

NMB TECHNOLOGIES  3115FS-12T-B30-A00  轴流风扇, 端子, 滚珠, 3115FS系列, 115 VAC, 80 mm, 38 mm, 32 cu.ft/min, 0.9 m³/min

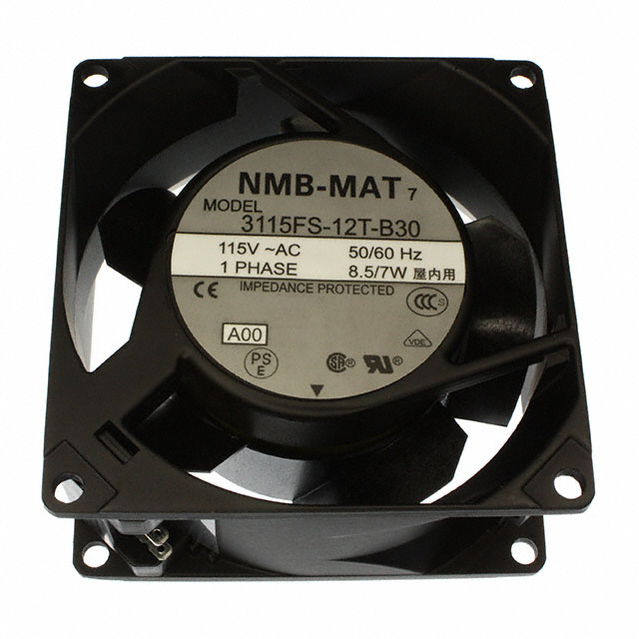

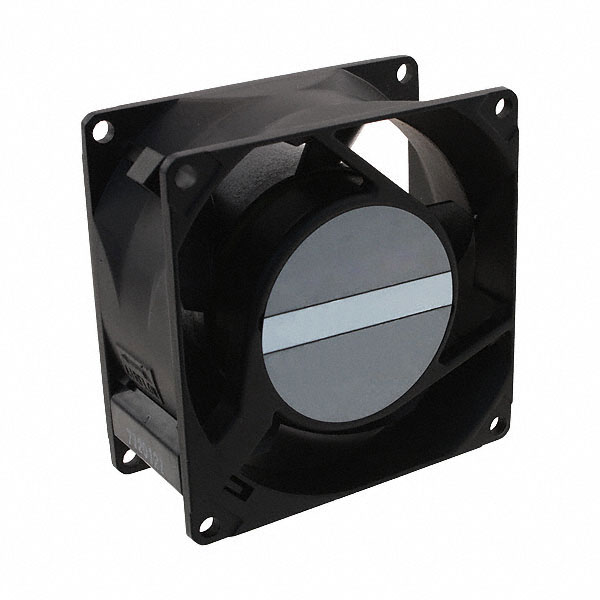

The is a 115VAC Axial Fan with ball bearing and terminal power connection. This F-series axial fan comes with aluminium casing and reinforced plastic impeller. UL3266, CSA CL 1252, 22AWG lead wire. Counter-clockwise direction of rotation, air out over struts. Shaded-pole induction motor structure, standard special control function and standard model flanged mounting. Can be an integral part of a cooling solution for heat-generating purpose.

.

UL94V-0 Flammability rating

.

3250RPM Speed rating

.

-10 to 70°C Operating temperature range

.

8.5W Rated power

.

0.18"-H2O Static pressure

.

10MR or over with a DC500V Megger insulation resistance

.

Impedance protection
