3-1437664-3

Buchanan- 4 位置 9.53mm 单排 双 栅栏式 端子条- NC6-P108-04

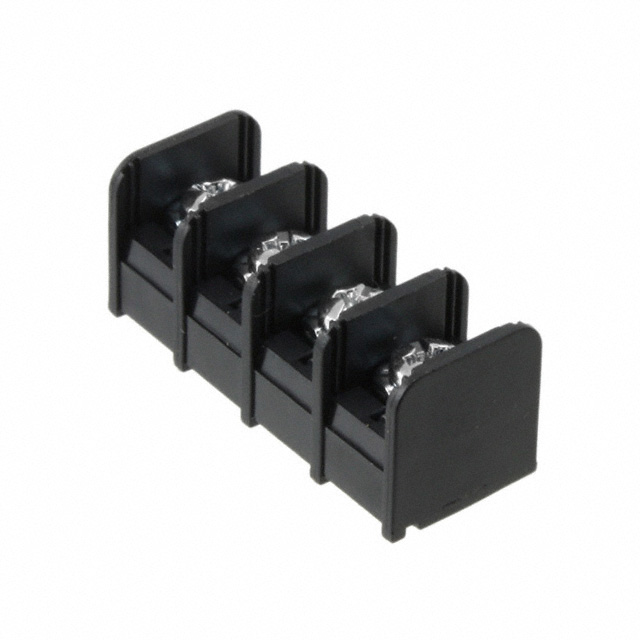

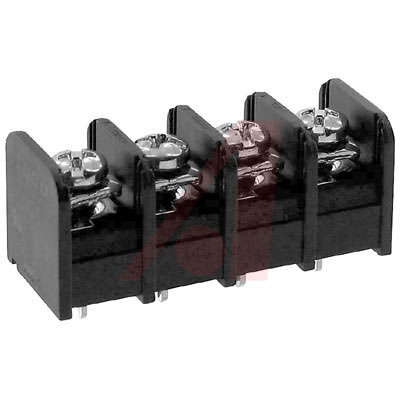

Barrier Strip, Single Level, Flat Base Style, Steel Screw Material

** Material** : ** Terminals** : Bright acid tin over copper alloy. ** Screws** : #6-32 steel, zinc plating with clear chromate coating. Wire clamping screws and binding head screws available.

Barrier strip with printed circuit pin terminal style.

得捷:
NC6-P108-04=7180XX002/30

艾睿:
This barrier strip 3-1437664-3 PCB terminal block manufactured from TE Connectivity will connect wires together. It has a straight body orientation. Its pitch is 9.53 mm. This is a 1-row connector. This device has a maximum current rating of 20 A/contact. 3-1437664-3 is housed in polyamide. Its wire is 12-22 AWG. This product is 39.64 mm long, 16.51 mm tall and 16 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C. It uses the solder termination method.

Allied Electronics:
Conn; Term Strip; Barrier; 4Pole; 9.53mmPitch; SnglRow; 22-12; Series NC6; 20A; 300V

安富利:
Conn Barrier Strip 4 POS 9.53mm Solder ST Thru-Hole 20A/Contact

Chip1Stop:
Conn Barrier Strip 4 POS 9.53mm Solder ST Thru-Hole 20A/Contact

Verical:
Conn Barrier Strip 4 POS 9.53mm Solder ST Thru-Hole 20A/Contact Package

MASTER:
PCB Mount Barrier Terminal Block - 9.53 mm - 1 Row - 4 Positions - 22 AWG - 12 AWG - 20 A.

Powell:
Barrier Style Terminal Blocks

Electro Sonic:
PCB Mount Barrier Terminal Block - 9.53 mm - 1 Row - 4 Positions - 22 AWG - 12 AWG ...
