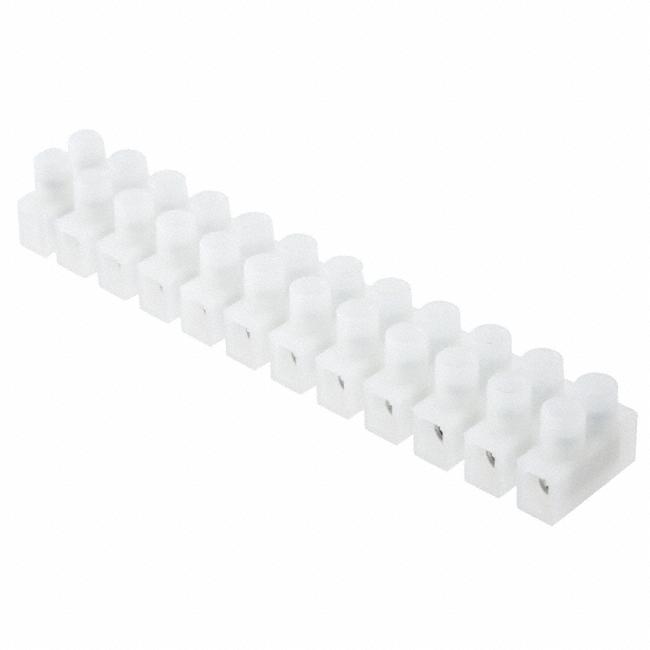

3240167图片6
3240167概述

Conn Terminal Strip F 24POS Screw Cable Mount 24A

** Contact Europe Connectors**

Polyamide Europe terminal strip, transparent, with wire protection, for connecting solid conductors and stranded conductors with and without ferrules with a cross section of 0.75 to 4 mm2


得捷:
CONN TERM STRIP 12CIRCUIT


艾睿:
Conn Barrier Strip F 24 POS Screw Cable Mount 24A


Allied Electronics:
Terminal Strip; Transparent Polyamide; Wire Protection


Verical:
Conn Terminal Strip F 24 POS Screw Cable Mount 24A


MASTER:
Polyamide Europe terminal strip - transparent - with wire protection - for connecting solid conductors and stranded conductors with and without ferrules with a cross section of 0.5 to 2.5 mm²


Online Components:
Conn Terminal Strip F 24 POS Screw Cable Mount 24A


Electro Sonic:
Polyamide Europe terminal strip - transparent - with wire protection - for connecting solid conductors and stranded conductors with and ...


3240167中文资料参数规格
技术参数

触点数 24

线规 12AWG ~ 22AWG

排数 2

电路数 12

易燃性等级 UL 94 V-2

额定电流Max 24 A

工作温度Max 110 ℃

工作温度Min -40 ℃

额定电压Max 450 V

额定电压 300 V

工作电压Max 450 V

外形尺寸

长度 93.6 mm

宽度 16.2 mm

高度 13.4 mm

物理参数

颜色 Clear

工作温度 -40℃ ~ 110℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买3240167
型号: 3240167
描述:Conn Terminal Strip F 24POS Screw Cable Mount 24A
