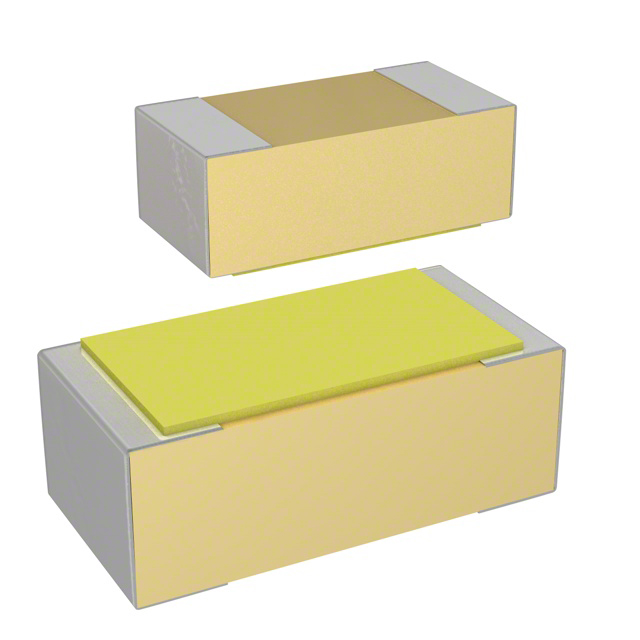

FUSE BOARD MNT 4A 32VAC/VDC 0603
Surface Mount Fuse, 1.6 x 0.8 mm, Super-Quick-Acting FF, 32 VAC, 63 VDC. Non resettable fuses. UL characteristic. Low melting I2t-values, fast interruption. Impermeable to potting compound. Standards: UL 248-14; CSA C22.2 no. 248.14. Approvals - UL File Number: E41599. Applications: Secondary Protection DC and AC; Circuits without inrush; Semiconductor protection.
艾睿:
Fuse Chip Very Fast Acting 4A 32V SMD Solder Pad 0603 Glass T/R cULus
Allied Electronics:
Fuse; Super-Quick-Acting; 1.6x0.8mm; 4A; 32VAC/DC; Epoxyd Glass; PCB/Srfc Mt; Tape-1000
安富利:
USF 0603 FUSE 4A FF
CDI:
USF 0603 FUSE 4A FF
Electro Sonic:
USF 0603 FUSE 4A FF
额定电压DC 63 V
额定电压AC 32 V
额定电流 4 A
工作温度Max 90 ℃
工作温度Min -55 ℃
额定电压 32 V
额定电压DC Max 32 V
额定电压AC Max 32 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.6 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
