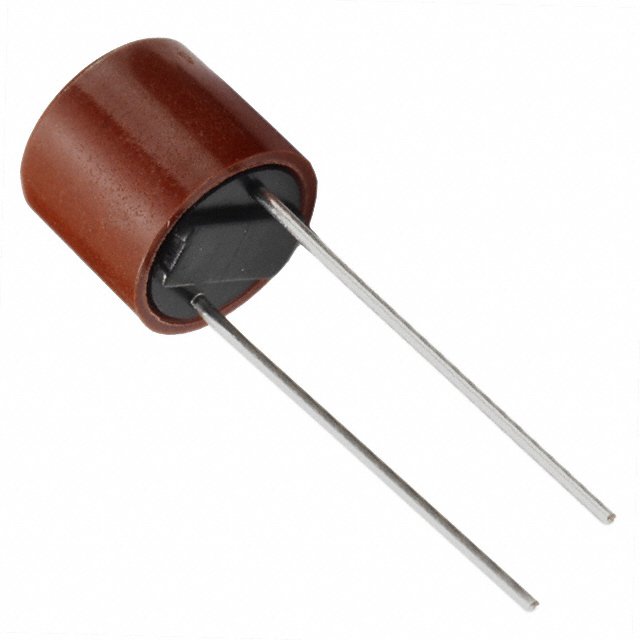

382 系列 延时 250 VAC 8.5 x 8 mm 径向 垂直 TR5 保险丝
A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. This device has a maximum power dissipation of 1.4 W. This device has a current rating of 6.3. Its maximum power dissipation is 1.4 W. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 38216300000 fuse has a radial termination style. The maximum AC voltage rating is 250 VAC. This product is 8Max mm tall with a diameter of 8.5 mm. Its fuse is made from thermoplastic.
额定电压DC 250 V
额定电压AC 250 V
额定电流 6.3 A
易燃性等级 UL 94 V-0
耗散功率 1.4 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1.4 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
