栅栏式接线端子 .563 PHENOLIC 6P closed bottom

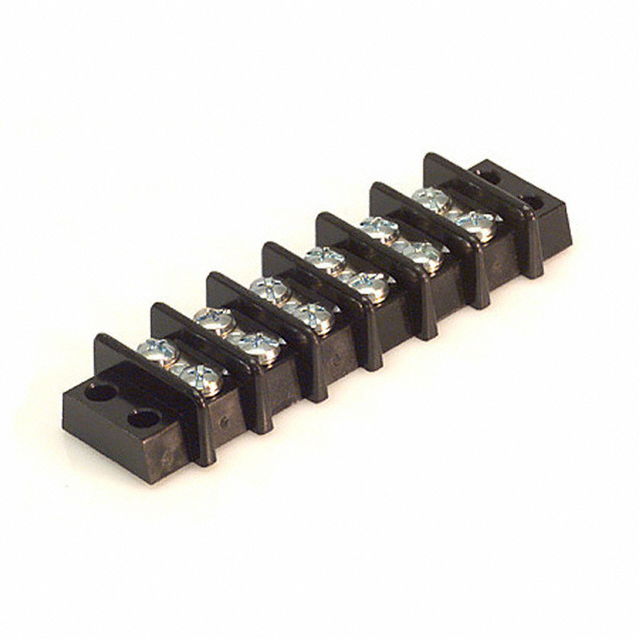

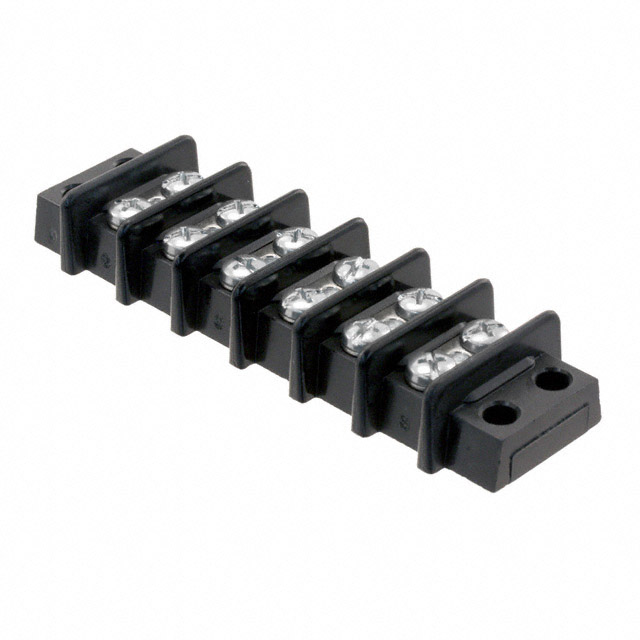

** 38210 & 38211 Series Terminal Strips**
The Molex 38210 and 38211 series of terminal strips come with complete assurance of quality and reliability. These terminal strips come complete with a 14.29mm pitch size. Both will range from 2 positions to 12 positions.
得捷:
CONN BARRIER STRIP 6CIRC 0.563"
贸泽:
栅栏式接线端子 .563 PHENOLIC 6P closed bottom
Allied Electronics:
Conn; Term Strip; 6; 14.29 mm; Double Row; Series 21000CB; 30 A; Clsd back
触点数 6
线规 10AWG ~ 18AWG
触点电镀 Nickel
额定电流 30 A
排数 2
电路数 6
易燃性等级 UL 94 V-0
针脚数 6
安装角度 180 °
额定电压 300 V
安装方式 Chassis, Screw
引脚间距 14.3 mm
长度 4.34 mm
宽度 3.94 mm
高度 16.0 mm
引脚间距 14.3 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 150 ℃
外壳材质 Plastic
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
